| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,672 pcs
|
9672 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Features | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Switching Capacity | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage Rating |

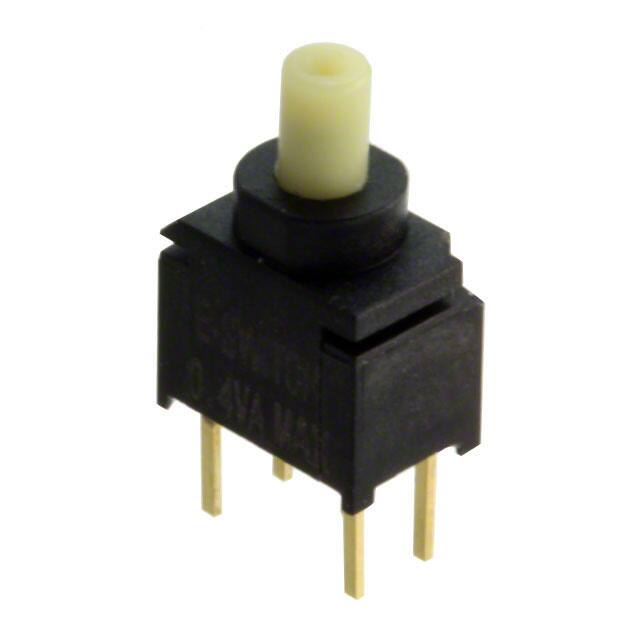

The E-Switch 800U Series 800USP8P1A1M2RE is a sealed, ultraminiature pushbutton switch. It features a Single Pole Double Throw (SPDT) circuit configuration with an On-Mom function. The switch is rated for a switching capacity of 0.4VA (AC/DC) at a maximum voltage of 20V.
Designed for robust applications, this pushbutton switch boasts an IP67 ingress protection rating, making it dust-tight and waterproof. It is intended for through-hole mounting and utilizes PC pin termination style. The operating temperature range for this component is -30°C to 85°C.
Additional features include epoxy sealed terminals for enhanced durability. The 800USP8P1A1M2RE is part of the 800U Series, known for its sealed and ultraminiature design, suitable for various industrial and electronic applications where environmental resistance is crucial.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 20V (AC/DC).
The switching capacity is 0.4VA.
It features an SPDT (Single Pole Double Throw) circuit.
It is designed for through-hole mounting.
The switch has an IP67 rating, indicating it is dust-tight and waterproof.
The operating temperature range is -30°C to 85°C.
