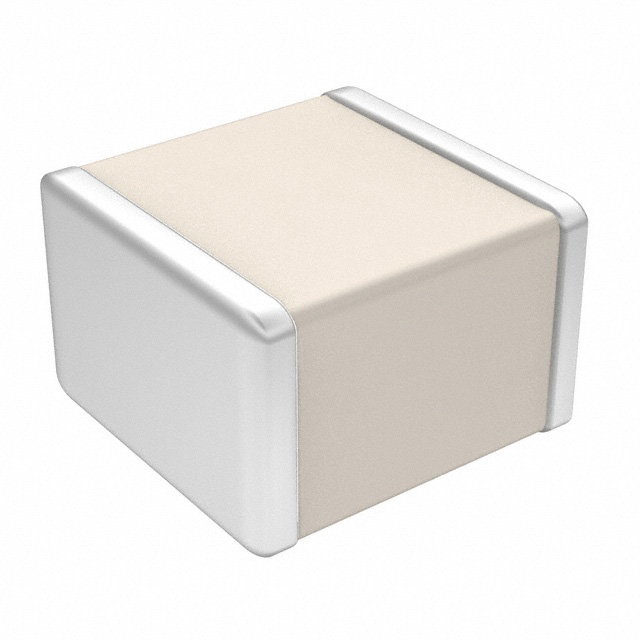

800B120JT500XT The American Technical Ceramics 800B120JT500XT is a ceramic capacitor with a capacitance of 12pF and a voltage rating of 500V. It features a C0G/NP0 temperature coefficient and a surface mount MLCC package.
Mfr Part #:

800B120JT500XT

Available from 2 distributors
Mfr Name: American Technical Ceramics
American Technical Ceramics
The American Technical Ceramics 800B120JT500XT is a ceramic capacitor with a capacitance of 12pF and a voltage rating of 500V. It features a C0G/NP0 temperature coefficient and a surface mount MLCC package.
✓ Total Stock: 630 pcs
$ Price Range: $0.10

800B120JT500XT Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
315 pcs
On Request
315 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
315 pcs
On Request
315 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

800B120JT500XT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Features
Mounting Type
Operating Temperature
Temperature Coefficient
Thickness (Max)
Tolerance
View Similar Products (0)

800B120JT500XT Description

Short technical summary and product information.

The American Technical Ceramics 800B120JT500XT is a ceramic capacitor designed for high-frequency applications. It offers a capacitance of 12pF with a tight tolerance of ±5% and a high voltage rating of 500V.



The capacitor features a C0G, NP0 temperature coefficient, ensuring stability over a wide operating temperature range of -55°C to 125°C. Its dimensions are 0.110" L x 0.110" W (2.79mm x 2.79mm) with a maximum thickness of 0.070" (1.78mm).



Designed for surface mounting, this MLCC comes in an 1111 (2828 Metric) package and is supplied on tape and reel. Key characteristics include High Q, Low Loss, and Ultra Low ESR, making it suitable for RF, Microwave, and High Frequency applications.

800B120JT500XT Quick Information

Product Type: Ceramic Capacitor
Series: ATC 800B
Canonical Name: American Technical Ceramics 800B120JT500XT Ceramic Capacitor
Subcategory: Ceramic Capacitor

800B120JT500XT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

800B120JT500XT Estimated Pricing

Qty Low High
1+ $0.10 $0.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

800B120JT500XT Features

  • 12pF capacitance with ±5% tolerance.
  • Rated for 500V DC operation.
  • C0G/NP0 temperature coefficient for stability.
  • High Q, Low Loss, Ultra Low ESR.
  • Surface mount MLCC in 1111 package.

800B120JT500XT Applications

  • Ideal for RF applications.
  • Suitable for microwave circuits.
  • Used in high-frequency designs.
  • General purpose capacitor needs.

800B120JT500XT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the 800B120JT500XT capacitor?

The capacitance of the 800B120JT500XT is 12 pF.

What is the voltage rating for the 800B120JT500XT?

The voltage rating for the 800B120JT500XT is 500 V.

What is the temperature coefficient of the 800B120JT500XT?

The temperature coefficient is C0G, NP0.

What are the dimensions of the 800B120JT500XT capacitor?

The dimensions are 0.110" L x 0.110" W (2.79mm x 2.79mm).

What is the operating temperature range for this capacitor?

The operating temperature range is -55°C to 125°C.

What type of package is the 800B120JT500XT in?

It is in an 1111 (2828 Metric) package.

How is the 800B120JT500XT capacitor mounted?

It is a surface mount MLCC.
