BC847B/215
Nexperia USA Inc.
The Nexperia USA Inc. BC847B/215 is a bipolar transistor. It is RoHS3 Compliant and has an MSL Level 1 rating.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| SVHC Present |

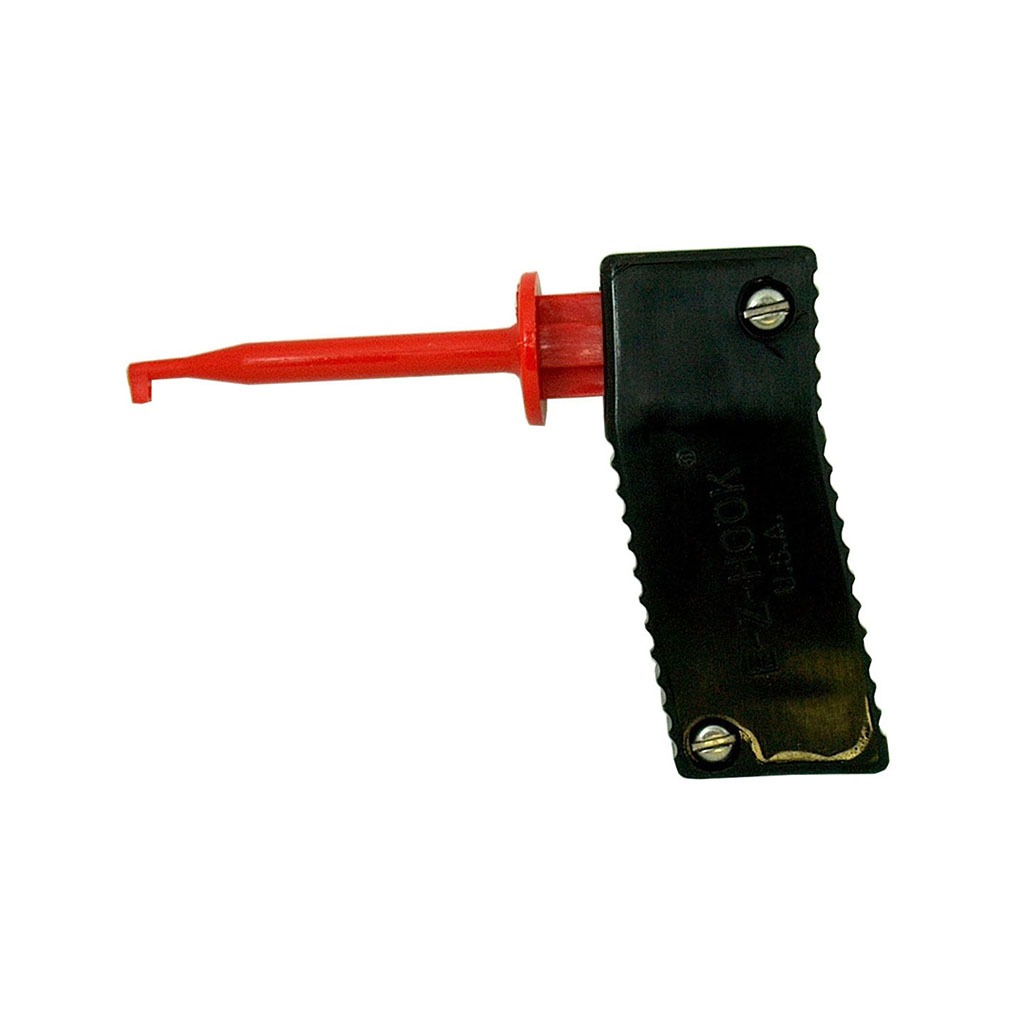

The E-Z-Hook 8001 XR Mini Hook Test Connector is a mid-size hook designed to bridge the gap between general-purpose and macro hook models. It features an increased blade thickness and a widened hook bend, allowing for both vertical and horizontal connections.
This test connector boasts a gold-plated beryllium copper contact blade and a durable nylon housing. It has a maximum recommended current rating of 5.9 AMPS and a maximum recommended voltage of 5.4 kV. The spring pressure is 12 oz (340 g), and the hook can fit over components up to 0.059 inches (1.5 mm) in diameter. The wire exit hole accepts wire sizes from 30-20 AWG or a maximum wire diameter of 0.09 inches (2.28 mm).
The XR model is field serviceable and is popular for testing electronic connections across various industries, including medical and electrical applications. Its tip design permits hook-up vertically or horizontally, making it a versatile tool for testing miniature components and electrical test boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.36 | $10.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum recommended voltage for the E-Z-Hook 8001 is 5.4 kV.
The maximum recommended current for the E-Z-Hook 8001 is 5.9 AMPS.
The contact blade of the E-Z-Hook 8001 is made from gold-plated beryllium copper.
The maximum recommended operating temperature for the E-Z-Hook 8001 is 200°F (93°C).
The E-Z-Hook 8001 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the E-Z-Hook 8001 is 1 Unlimited.
The REACH status for the E-Z-Hook 8001 is REACH Unaffected.
