Mfr Part #:

800-80-046-30-001101

Name: 800-80-046-30-001101
Brand: Preci-Dip
SKU: 800-80-046-30-001101

Mfr Name: Preci-Dip

Description:

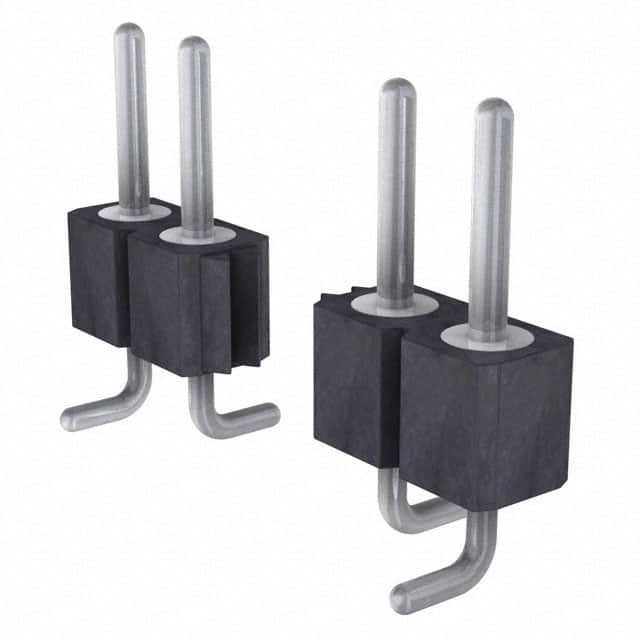

CONN HEADER SMD 46POS 2.54MM

Stock on Request

800-80-046-30-001101 Description

Short technical summary and product information.

CONN HEADER SMD 46POS 2.54MM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

Preci-Dip

CONN HEADER SMD 46POS 2.54MM

Category	Headers, Male Pins
Manufacturer Name	Preci-Dip
Connector Type	Header
Contact Finish	Tin
Contact Length	0.191" (4.85mm)
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.116" (2.95mm)
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	46
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-55°C ~ 125°C
Pitch	0.100" (2.54mm)
Shrouding	Unshrouded
Style	Board to Board
Termination	Solder
Voltage Rating	150VDC
