| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
314 pcs
|
314 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

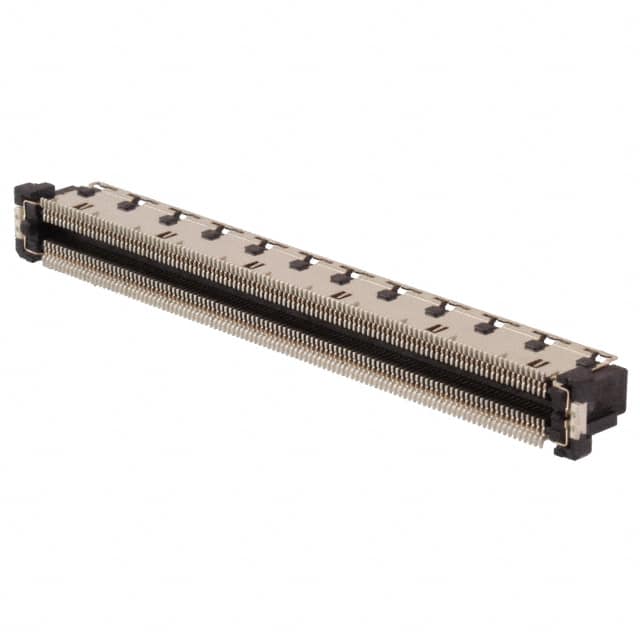

The 8-6318491-6 is a 220 position plug connector from TE Connectivity, featuring outer shroud contacts. It has a 0.50mm pitch and a height above board of 7.45mm, supporting mated stacking heights of 5mm and 8mm. The connector is designed for surface mount applications and includes features such as a board guide, ground plate, and solder retention.
This connector is part of TE Connectivity's Free Height board-to-board connector family, suitable for mezzanine stacking applications. The gold contact finish with a thickness of 0.203µm ensures reliable electrical performance. The connector has 2 rows of contacts.
The surface mount design facilitates automated assembly processes. The board guide and solder retention features aid in alignment and mechanical stability during soldering. The ground plate provides additional shielding and grounding capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $33.88 | $33.88 |
| 10+ | $28.80 | $28.80 |
| 30+ | $26.78 | $26.78 |
| 60+ | $25.56 | $25.56 |
| 120+ | $24.64 | $24.64 |
| 270+ | $24.39 | $24.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Plug, Outer Shroud Contacts.
220 positions.
0.50mm.
Surface Mount.
Gold with a thickness of 0.203µm.
5mm and 8mm.
Board Guide, Ground Plate, Solder Retention.
