8-35787-2 Ring terminal connector for 10-12 AWG wire with #8 stud. Features serrated termination and crimp connection.
Mfr Part #:

8-35787-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Ring terminal connector for 10-12 AWG wire with #8 stud. Features serrated termination and crimp connection.
✓ Total Stock: 500 pcs

8-35787-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

8-35787-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Finish
Contact Material
Features
Insulation
Length
Mounting Type
Stud
Tape & Reel
Terminal Type
Termination
Thickness
Width
Wire Gauge
View Similar Products (0)

8-35787-2 Description

Short technical summary and product information.

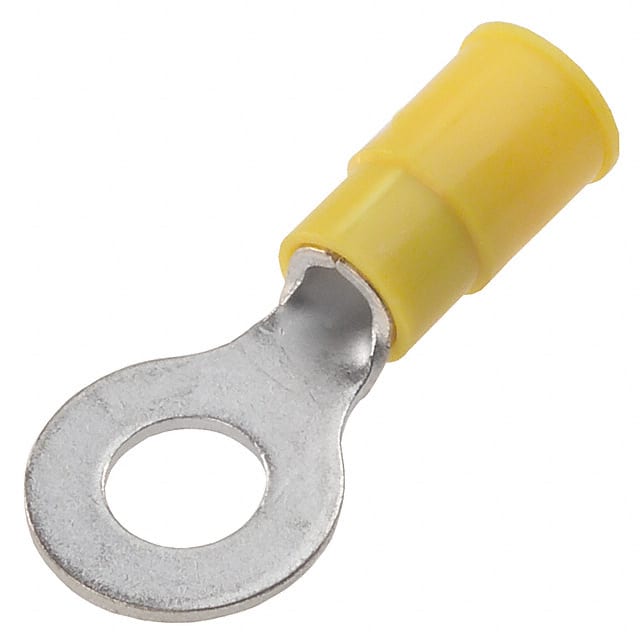

The TE Connectivity 8-35787-2 is a ring terminal designed for 10-12 AWG wire and #8 stud sizes. It features a circular terminal type with crimp termination for secure connections. The contact is copper with tin finish for conductivity and corrosion resistance. The terminal is insulated and yellow-colored, indicating the wire range. It includes serrated termination for improved wire grip. Mounting type is free hanging (in-line). Dimensions: length 26.19mm, width 7.92mm, thickness 1.02mm.

8-35787-2 Quick Information

Product Type: Ring Terminal
Canonical Name: TE Connectivity 8-35787-2 Insulated Ring Terminal, Circular, 10-12 AWG, #8 Stud
Subcategory: Insulated Ring Terminal

8-35787-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

8-35787-2 Features

  • Serrated termination for secure wire grip.
  • Tin-plated copper contact for corrosion resistance.
  • Insulated for 10-12 AWG wire.
  • Crimp termination for reliable connection.
  • Yellow color indicates wire range.

8-35787-2 Applications

  • Connects 10-12 AWG wire to #8 stud.
  • Terminates with standard crimp tools.

8-35787-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the mounting type of this ring terminal?

Free Hanging (In-Line).

What wire gauge does this terminal accommodate?

10-12 AWG.

What stud size is this terminal compatible with?

#8 Stud.

What is the contact material and finish?

Copper with Tin plating.

Is this terminal insulated?

Yes, it is insulated.

Does this terminal have any special feature?

Yes, it has a serrated termination.

What is the terminal type?

Circular.
