| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
492 pcs
|
492 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrel Type | |
| Body Style | |
| Color | |
| Contact Finish | |
| Contact Material | |
| ELV | |
| Features | |
| Government/Industry Qualification | |
| Heavy Duty | |
| Insulation | |
| Insulation Diameter (Max) | |
| Insulation Material | |
| Insulation Support | |
| Lead Free Solder Processes | |
| Length | |
| Mounting Type | |
| Packaging Method | |
| Packaging Quantity | |
| Receptacle Style | |
| Stud | |
| Stud Diameter | |
| Tape & Reel | |
| Terminal Shape | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thickness | |
| Tongue Thickness | |
| Voltage Rating | |
| Width | |
| Wire Gauge | |
| Wire Range (CMA) | |
| Wire Range (mm²) |

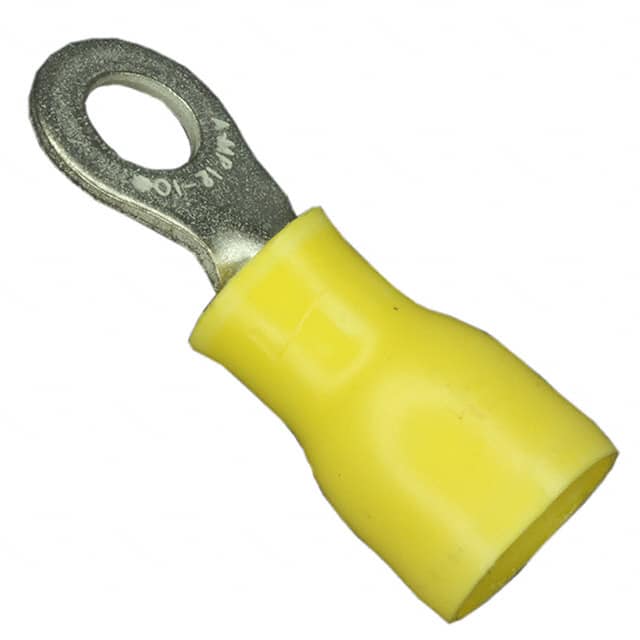

The TE Connectivity 8-35364-2 is a PIDG (Pre-Insulated Diamond Grip) ring tongue terminal designed for 10-12 AWG wire. It features a #10 stud size with a stud diameter of 4.82 mm and a closed barrel crimp termination. The terminal is insulated with a yellow nylon sleeve that supports up to 7.62 mm maximum insulation diameter.
Constructed from tin-plated copper, this terminal offers good electrical conductivity and corrosion resistance. It includes a serrated termination feature that enhances grip on the wire, ensuring a reliable connection. The straight receptacle style and circular terminal type are suited for free hanging (in-line) mounting applications.
With a voltage rating of 300 VAC, this terminal is appropriate for a wide range of electrical interconnection needs. The packaging is loose piece, supplied in boxes of 50 units. The overall dimensions include a length of 29.77 mm, a width of 9.53 mm, and an overall thickness of 0.99 mm.
10-12 AWG (3.00-6.00 mm²)
#10 (stud diameter 4.82 mm)
Yes, it is insulated with nylon and color coded yellow.
300 VAC
Crimp termination with a closed barrel.
Copper contact with a tin finish.
Supplied loose piece, 50 per box.
