| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
95 pcs
|
95 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Halogen Free | |
| Insulation | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Stud | |
| Stud Size | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Method | |
| Thickness | |
| Width | |
| Wire Gauge |

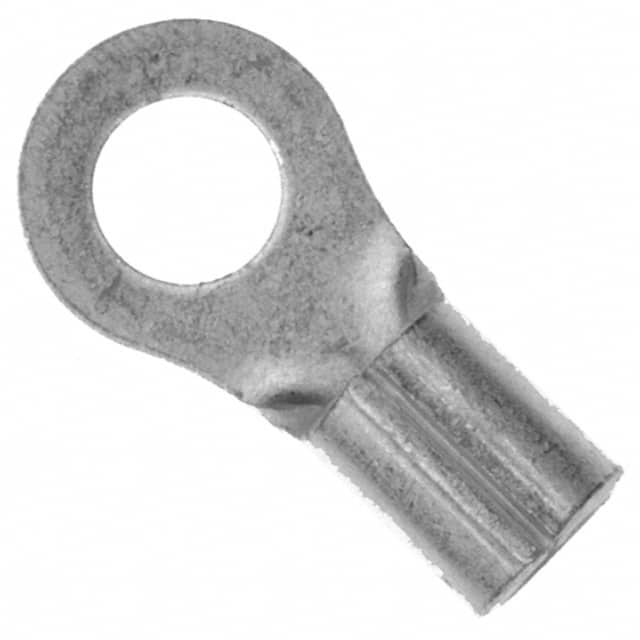

The TE Connectivity 8-34104-1 is a non-insulated circular ring terminal designed for 16-22 AWG wire with a #4 stud size. The terminal features a tin-plated copper contact for reliable conductivity and corrosion resistance. It uses a crimp termination method and is free hanging (in-line) mountable.
Mechanical specifications include a thickness of 0.79mm (0.031"), width of 5.54mm (0.218"), and length of 11.40mm (0.449"). The terminal incorporates a brazed seam and serrated termination for secure wire grip and consistent electrical performance.
This ring connector is suitable for general-purpose wire termination applications where a secure, permanent connection to a #4 stud is required. The non-insulated design allows for use in environments where insulation is not needed or where additional heat shrink tubing is applied.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.68 | $0.68 |
| 10+ | $0.57 | $0.57 |
| 25+ | $0.51 | $0.51 |
| 100+ | $0.46 | $0.46 |
| 300+ | $0.44 | $0.44 |
| 1,000+ | $0.38 | $0.38 |
| 2,500+ | $0.36 | $0.36 |
| 5,000+ | $0.34 | $0.34 |
| 10,000+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16-22 AWG
#4 stud
Crimp
No, it is non-insulated.
Copper contact with tin finish.
