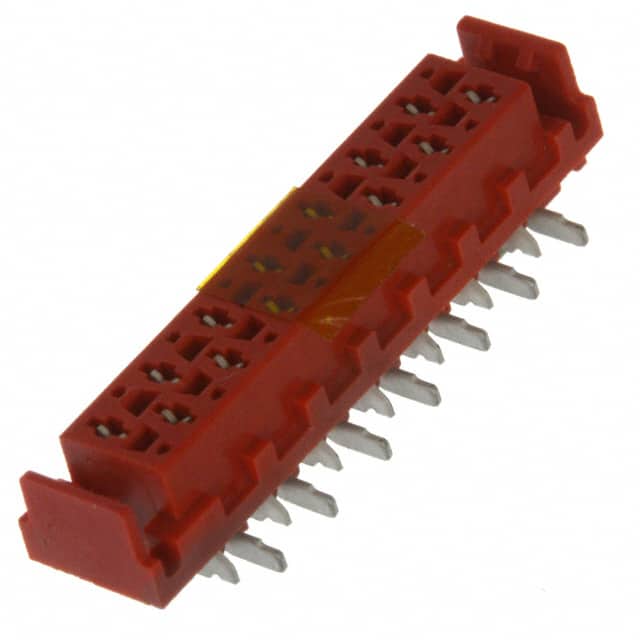

8-338069-4 14 position surface mount receptacle with 2.54mm pitch, tin-plated forked contacts, and friction lock fastening.
Mfr Part #:

8-338069-4

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
14 position surface mount receptacle with 2.54mm pitch, tin-plated forked contacts, and friction lock fastening.
✓ Total Stock: 3,034 pcs
$ Price Range: $2.11 - $3.89

8-338069-4 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
2,700 pcs
On Request
2700 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
334 pcs
On Request
334 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

8-338069-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

8-338069-4 Description

Short technical summary and product information.

The TE Connectivity 8-338069-4 is a 14-position rectangular receptacle connector designed for board-to-board or cable applications. It features a 2.54mm pitch with dual rows and a 2.54mm row spacing, accommodating all 14 positions for maximum connectivity.



The connector uses surface mount solder termination and includes a friction lock to secure the mating connection. The forked contact type uses a tin contact finish. The housing has a red insulation color and a height of 5.30mm. It is rated for operating temperatures from -40°C to 105°C and a voltage rating of 100VDC.



The housing material has a flammability rating of UL94 V-0. This connector is suitable for pick-and-place assembly processes.

8-338069-4 Quick Information

Product Type: Rectangular Connector
Canonical Name: Rectangular Connector, Receptacle, Surface Mount, 14 Positions, Pitch 2.54mm
Subcategory: Board-to-Board / Cable Connectors

8-338069-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

8-338069-4 Estimated Pricing

Qty Low High
1+ $3.89 $3.89
10+ $3.31 $3.31
100+ $2.82 $2.82
250+ $2.79 $2.79
500+ $2.49 $2.49
900+ $2.33 $2.33
1,800+ $2.21 $2.21
4,500+ $2.11 $2.11

Estimated market price range - modelled values for guidance only, not live distributor offers.

8-338069-4 Features

  • 14 position dual row 2.54mm pitch receptacle.
  • Surface mount solder termination.
  • Tin plated forked contacts.
  • Friction lock fastening mechanism.
  • Pick-and-place compatible design.

8-338069-4 Applications

  • Ideal for board-to-board connections.
  • Suitable for cable-to-board interfaces.
  • Used in automated pick-and-place assembly.
  • Fits applications requiring friction lock retention.

8-338069-4 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

14 positions with all positions loaded in 2 rows.

What is the pitch of this connector?

2.54mm (0.100 inches).

What is the voltage rating?

100VDC.

What is the mounting type?

Surface mount with solder termination.

What is the operating temperature range?

-40°C to 105°C.

What contact finish is used?

Tin.

Does this connector have a locking mechanism?

Yes, it has a friction lock fastening type.
