| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17,100 pcs
|
17100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

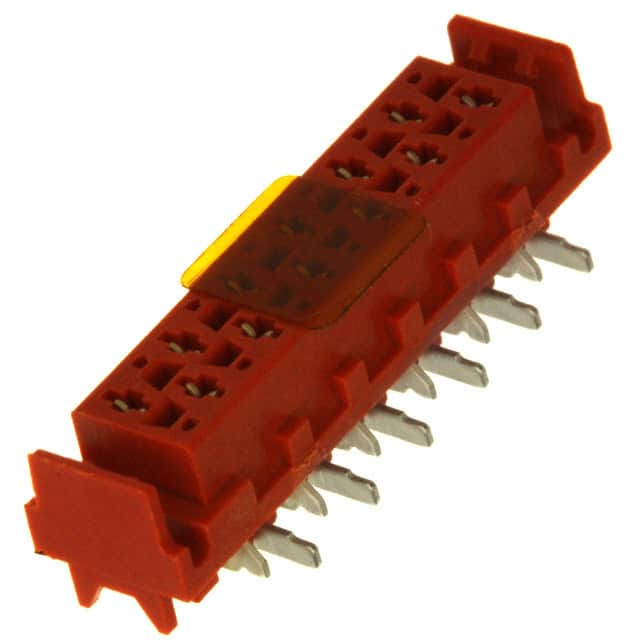

The TE Connectivity 8-338069-2 is a 12-position rectangular connector receptacle designed for board-to-board or cable applications. It features a 2.54mm (0.100") pitch with 2 rows and a row spacing of 0.100" (2.54mm). The connector uses forked tin contacts and is terminated via surface mount solder attachment.
The housing is red with an insulation height of 5.30mm (0.209") and is rated UL94 V-0 for flammability. The connector includes a friction lock fastening type for secure mating and is pick-and-place compatible for automated assembly. It operates over a temperature range of -40°C to 105°C and is rated for 100VDC.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.16 | $3.16 |
| 10+ | $2.69 | $2.69 |
| 100+ | $2.43 | $2.43 |
| 250+ | $2.35 | $2.35 |
| 500+ | $2.28 | $2.28 |
| 900+ | $2.03 | $2.03 |
| 1,800+ | $1.90 | $1.90 |
| 4,500+ | $1.78 | $1.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 12 positions arranged in 2 rows.
The pitch is 2.54mm (0.100").
The voltage rating is 100VDC.
It is a surface mount connector with solder termination.
The operating temperature range is -40°C to 105°C.
The housing material is rated UL94 V-0.
Yes, it features a friction lock fastening type.
