| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29,700 pcs
|
29700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Length | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Mating Area Plating Material Thickness | |
| Contact Type | |
| Current Rating (Max) | |
| Fastening Type | |
| Features | |
| Housing Material | |
| Insulation Color | |
| Insulation Height | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Standard Package Quantity | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Post & Tail Length | |
| Termination Style | |
| Voltage Rating |

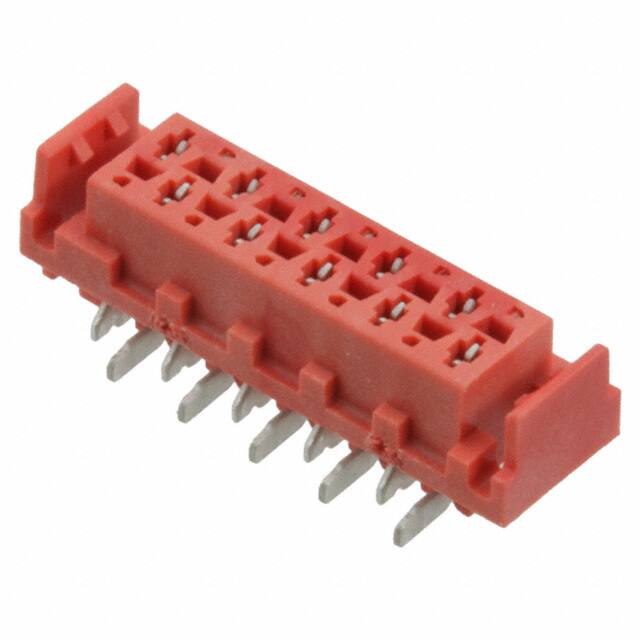

The TE Connectivity 8-338069-0 is a Micro-MaTch Industrial series receptacle designed for board-to-board or cable applications. It features 10 positions arranged in 2 rows with a 2.54mm pitch and 2.54mm row spacing. The connector uses socket contacts with tin plating and a phosphor bronze base material.
This surface mount connector is rated for 100 VAC operating voltage and 1.5 A maximum current. It offers an insulation resistance of 1000 MΩ and operates over a temperature range of -40°C to 105°C. The housing is made of PA 4.6 with a UL94 V-0 flammability rating and is colored red.
The connector includes a friction lock fastening type and a pick-and-place feature for automated assembly. Termination is via solder, with a termination post and tail length of 5.3 mm. The contact mating area plating thickness is 3 to 5 µm.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.74 | $2.74 |
| 10+ | $2.36 | $2.36 |
| 25+ | $2.31 | $2.31 |
| 100+ | $2.06 | $2.06 |
| 250+ | $1.85 | $1.85 |
| 500+ | $1.70 | $1.70 |
| 900+ | $1.53 | $1.53 |
| 1,800+ | $1.43 | $1.43 |
| 4,500+ | $1.38 | $1.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54 mm.
The maximum current rating is 1.5 A.
The voltage rating is 100 VAC.
It uses surface mount mounting.
The operating temperature range is -40°C to 105°C.
The insulation resistance is 1000 MΩ.
The housing material has a UL94 V-0 flammability rating.
