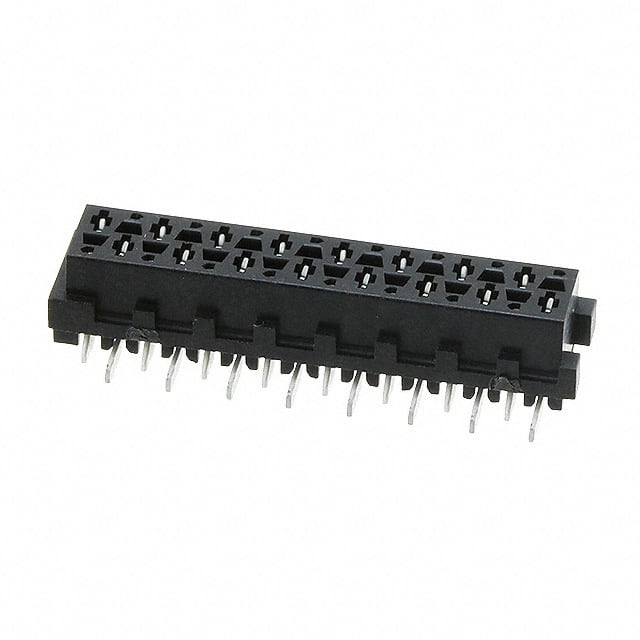

8-2178711-6 The 8-2178711-6 is a 16-position surface mount receptacle from TE Connectivity with 2.54mm pitch, forked contacts, and tin finish. It supports board-to-board or cable connections with push-pull fastening.
Mfr Part #:

8-2178711-6

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The 8-2178711-6 is a 16-position surface mount receptacle from TE Connectivity with 2.54mm pitch, forked contacts, and tin finish. It supports board-to-board or cable connections with push-pull fastening.
✓ Total Stock: 900 pcs
$ Price Range: $1.22 - $2.55

8-2178711-6 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
900 pcs
900 pcs On Request 1 On Request On Request On Request On Request On Request

8-2178711-6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Lead Spacing
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Style
Tape & Reel
Termination
Termination Style
Voltage Rating

8-2178711-6 Description

Short technical summary and product information.

The TE Connectivity 8-2178711-6 is a 16-position rectangular connector receptacle intended for board-to-board or cable-to-board interconnections. It features a 2-row, 2.54mm pitch layout with all positions loaded, providing a compact and reliable interconnect solution for various electronic systems.



This receptacle uses forked contacts with a tin finish (118.1µin thickness) and is rated for 100 VDC operation. The black insulation has a height of 5.30mm, and the connector operates over a temperature range of -30°C to 85°C.



The surface mount termination with solder ensures secure PCB attachment, while the push-pull fastening type simplifies mating and unmating. The included pick-and-place feature facilitates automated assembly in high-volume manufacturing. The connector's design supports use in board-to-board and cable-to-board applications requiring a robust, low-profile interconnection.



RoHS3 compliance is indicated, making the component suitable for lead-free electronic manufacturing processes. The connector is categorized under headers, receptacles, and female sockets, specifically as a female receptacle that accepts mating headers or cable assemblies.

8-2178711-6 Quick Information

Product Type: Rectangular Connector Receptacle
Canonical Name: Rectangular Connector Receptacle, 16 Position, 2.54mm Pitch, Surface Mount
Subcategory: Headers, Receptacles, Female Sockets

8-2178711-6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

8-2178711-6 Estimated Pricing

Qty Low High
1+ $2.55 $2.55
10+ $2.24 $2.24
25+ $2.15 $2.15
100+ $2.05 $2.05
250+ $1.94 $1.94
500+ $1.59 $1.59
900+ $1.36 $1.36
1,800+ $1.28 $1.28
4,500+ $1.22 $1.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

8-2178711-6 Features

  • 16 position, 2-Row surface mount receptacle.
  • 2.54mm pitch for compact board designs.
  • Forked contacts with tin finish.
  • Rated for 100VDC operation.
  • Pick-and-place feature for automated assembly.

8-2178711-6 Applications

  • Supports board-to-board PCB connections.
  • Enables cable-to-board signal routing.
  • Suitable for push-pull mating applications.

8-2178711-6 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TE Connectivity 8-2178711-6 have?

The 8-2178711-6 has 16 positions, all loaded, in 2 rows.

What is the pitch of the 8-2178711-6?

The pitch is 2.54mm (0.100 inches).

What is the voltage rating of the 8-2178711-6?

The voltage rating is 100 VDC.

What is the mounting type of the 8-2178711-6?

The connector is surface mounted with solder termination.

What type of contacts are used in the 8-2178711-6?

The contacts are forked type.

What is the operating temperature range of the 8-2178711-6?

The operating temperature range is -30°C to 85°C.

How does the 8-2178711-6 fasten?

It uses push-pull fastening.
