| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
330 pcs
|
330 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| ELV | |
| Fastening Type | |
| Features | |
| Halogen Content | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Solder Process Capability | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

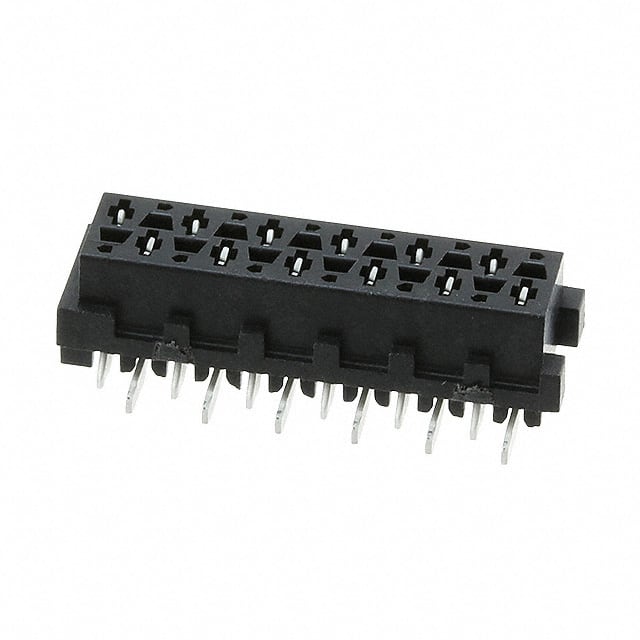

The TE Connectivity 8-2178711-2 is a 12-position receptacle connector from the Micro-Match Value Line series. It features a 2.54mm pitch and 2.54mm row spacing, with a forked contact design and tin contact finish. This surface mount connector is suitable for board-to-board or cable applications.
The connector has a push-pull fastening type and a black insulation with a height of 5.30mm. It is rated for 100VDC and operates from -30°C to 85°C. The solder termination is reflow solder capable to 260°C.
Designed for automated assembly, the connector includes a pick and place feature. It is RoHS, ELV, and China RoHS compliant, though it is not low halogen.
The connector is ideal for compact electronic assemblies requiring reliable, space-saving interconnections.
| Qty | Low | High |
|---|---|---|
| 900+ | $1.15 | $1.15 |
| 1,800+ | $0.96 | $0.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
2.54mm (0.100").
100VDC.
Surface mount.
Tin.
-30°C to 85°C.
Yes, it is EU RoHS Directive 2011/65/EU compliant.
