Mfr Part #:

8-215570-6

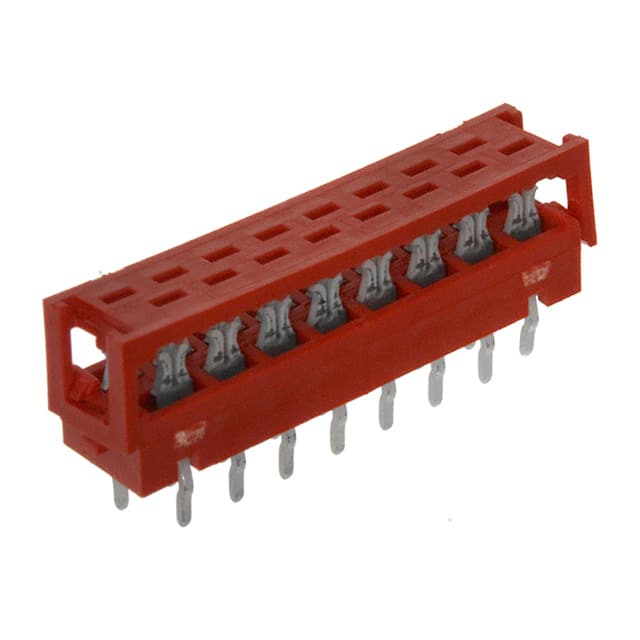

TE Connectivity 8-215570-6 MICRO-MATCH IDC DIP header connector with 16 positions, 2 rows, 2.54mm pitch, and 28 AWG wire. It features a feed-through design and is RoHS compliant.

✓ Total Stock: 2,250 pcs

$ Price Range: $1.54 - $2.65

8-215570-6 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
AA2DE ✓ Non-Authorised Inventory information	2,000 pcs On Request	2000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Husky International Electronic ✓ Non-Authorised Inventory information	250 pcs On Request	250 pcs	On Request	1	On Request	On Request	N/A	On Request	On Request

8-215570-6 Description

Short technical summary and product information.

The TE Connectivity 8-215570-6 is a MICRO-MATCH series 16-position DIP header IDC connector designed for direct wire-to-board applications. It features 2 rows with a 2.54mm board pitch and a 1.27mm cable pitch, supporting 28 AWG stranded or solid wire via IDC termination. The connector is mounted using through-hole press-fit technology and has a tin contact finish.

This connector includes a feed-through feature, allowing daisy-chaining of multiple connectors. It is rated for wave solder processes up to 265°C, making it suitable for standard PCB assembly. The red color housing provides visual identification.

Compliance data indicates RoHS (2011/65/EU) and REACH (SVHC-free) conformance, though it is not low halogen (Br/Cl > 900 ppm). The connector is intended for board-in direct wire-to-board connections, commonly used in ribbon cable interconnects and internal wiring harnesses in industrial and consumer electronics.

8-215570-6 Quick Information

Product Type: Board-In Direct Wire-to-Board Connector

Series: PBC

Canonical Name: TE Connectivity Micro-Match 8-215570-6 16 Position DIP IDC Connector

Subcategory: Board In, Direct Wire to Board

8-215570-6 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: Does not contain SVHC

8-215570-6 Estimated Pricing

Qty	Low	High
1+	$2.65	$2.65
10+	$2.25	$2.25
25+	$2.01	$2.01
100+	$1.92	$1.92
250+	$1.82	$1.82
500+	$1.69	$1.69
1,000+	$1.59	$1.59
2,500+	$1.57	$1.57
5,000+	$1.54	$1.54

Estimated market price range - modelled values for guidance only, not live distributor offers.

8-215570-6 Features

16 positions arranged in 2 rows.
IDC termination for 28 AWG wire.
2.54mm board pitch, 1.27mm cable pitch.
Through-hole press-fit mounting style.
RoHS and REACH compliant.

8-215570-6 Applications

Direct wire-to-board PCB connections.
Ribbon cable to board interconnection.
Internal wiring with IDC termination.
Prototyping and production wiring.

8-215570-6 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this connector have?

16 positions in 2 rows.

What is the pitch of this connector?

Board pitch is 2.54mm, cable pitch is 1.27mm.

What is the mounting type?

Through hole, press-fit.

What wire gauge is supported?

28 AWG stranded or solid.

What termination method is used?

IDC (Insulation Displacement Connection).

Is this connector RoHS compliant?

Yes, compliant with EU RoHS 2011/65/EU.

What is the solder process capability?

Wave solder capable to 265°C.

Category	Board In, Direct Wire to Board
Manufacturer Name	TE Connectivity
Board	0.100" (2.54mm)
Cable Pitch	0.050" (1.27mm)
Cable Termination	IDC
Color	Red
Connector Type	Ribbon Cable, DIP Header
Contact Finish	Tin
Features	Feed Through
Halogen Free	Not Low Halogen (Br/Cl > 900 ppm)
Mounting Type	Through Hole, Press-Fit
Number of Positions	16
Number of Rows	2
Row Spacing	0.100" (2.54mm)
SVHC Present	Not Present
Tape & Reel	Yes
Wire Gauge	28 AWG, Stranded or Solid
