| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,250 pcs
|
1250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
126 pcs
|
126 pcs | On Request | 20 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board | |
| Cable Pitch | |
| Cable Termination | |
| Cable Type | |
| Color | |
| Connector System | |
| Connector Type | |
| Contact Base Material | |
| Contact Finish | |
| Features | |
| Housing Material | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Operating Voltage | |
| Row Spacing | |
| Tape & Reel | |
| Wire Entry Location | |
| Wire Gauge |

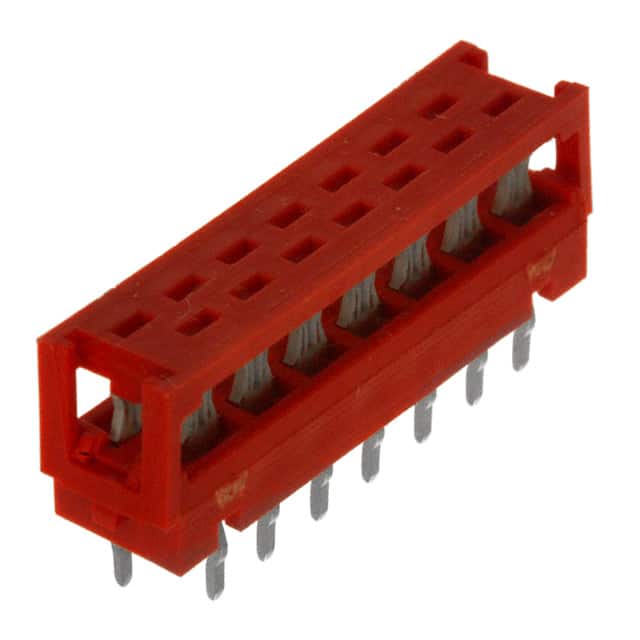

The 8-215570-4 is a PCB mount paddleboard connector from TE Connectivity's Micro-MaTch Industrial series. It has 14 positions arranged in 2 rows with a 1.27mm pitch and 2mm row spacing. The connector accepts 28 AWG ribbon cable via IDC termination and mounts to the PCB using through hole solder tails with kinked retention features.
The housing is made of red PBT GF material, and the contacts are phosphor bronze with matte tin plating (3–5 µm on the PCB termination area and 1 µm on the wire termination area). Electrical ratings include a maximum current of 1.5 A, operating voltage of 100 VAC, and insulation resistance of 1000 MΩ. The operating temperature range is -40 to 105 °C.
This connector is designed for cable-to-board signal applications and is suitable for industrial environments. The vertical orientation and top wire entry simplify routing in compact designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.20 | $3.20 |
| 10+ | $2.91 | $2.91 |
| 25+ | $2.73 | $2.73 |
| 100+ | $2.57 | $2.57 |
| 250+ | $2.24 | $2.24 |
| 500+ | $2.17 | $2.17 |
| 1,000+ | $1.93 | $1.93 |
| 2,500+ | $1.81 | $1.81 |
| 5,000+ | $1.69 | $1.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions in 2 rows.
1.27 mm (0.05 in).
1.5 A maximum.
100 VAC.
Through hole solder with kinked solder tails.
-40 to 105 °C.
28 AWG ribbon cable with insulation diameter 0.8-1 mm.
