| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120 pcs
|
120 pcs | On Request | 120 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board | |
| Cable Pitch | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Tape & Reel | |
| Wire Gauge |

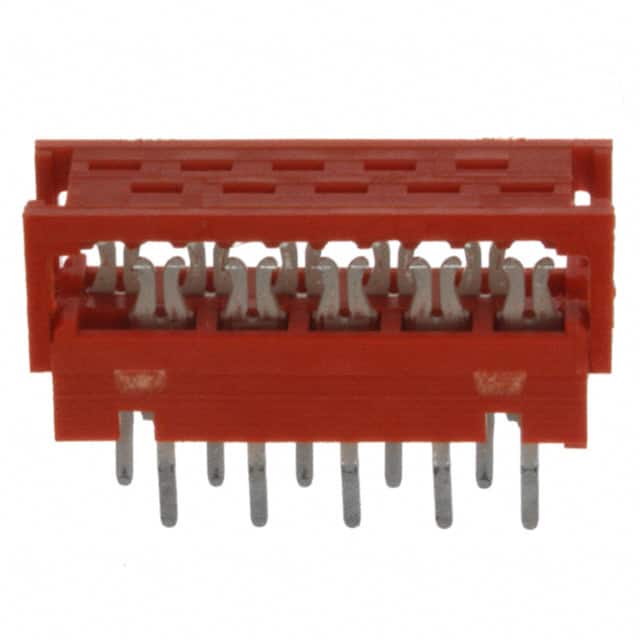

The TE Connectivity 8-215570-0 is a 10-position IDC DIP header connector designed for ribbon cable termination. It features a 2-row configuration with 0.100" (2.54mm) row spacing and 0.050" (1.27mm) cable pitch. The connector accepts 28 AWG stranded or solid wire and uses insulation displacement contact (IDC) termination for reliable connections without stripping. The contacts are finished with tin for good conductivity and solderability. The connector is through hole mounted with a press-fit feature for secure board attachment. It is RoHS3 compliant and has an MSL of 1 (unlimited). The red color aids in visual identification. This connector is suitable for board-to-wire applications in various electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.31 | $2.31 |
| 10+ | $2.02 | $2.02 |
| 25+ | $1.93 | $1.93 |
| 100+ | $1.80 | $1.80 |
| 250+ | $1.63 | $1.63 |
| 500+ | $1.50 | $1.50 |
| 1,000+ | $1.33 | $1.33 |
| 2,500+ | $1.25 | $1.25 |
| 5,000+ | $1.22 | $1.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions in 2 rows.
0.100" (2.54mm).
0.050" (1.27mm).
Through hole, press-fit.
28 AWG stranded or solid.
Tin.
Red.
