| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,250 pcs
|
5250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

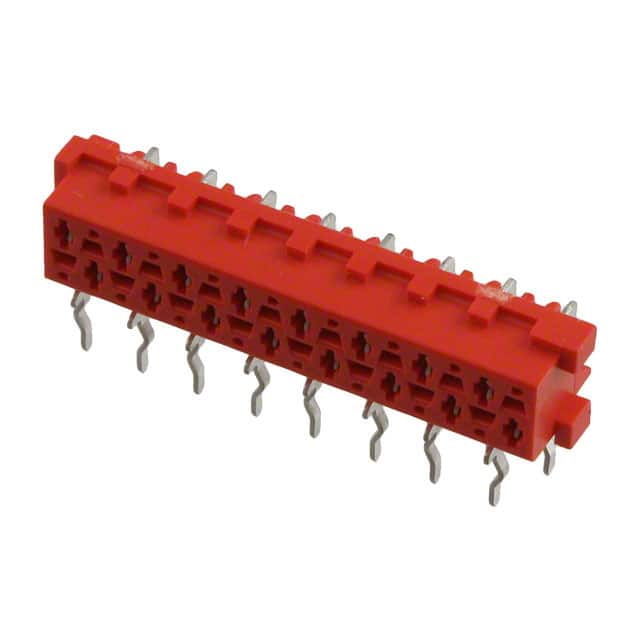

The TE Connectivity 8-215460-6 is a 16-position receptacle connector from the Micro-MaTch family. It features a forked contact type and a 2.54mm pitch with 2 rows. The connector is designed for through-hole right-angle mounting with kinked pin solder termination. The insulation is red with a height of 5.80mm and a UL94 V-0 flammability rating. The contact finish is tin with a contact length of 3.10mm. The row spacing is 2.54mm. The voltage rating is 100VDC and the operating temperature ranges from -40°C to 105°C. The fastening type is push-pull. This receptacle is suitable for board-to-board or cable connections. Packaging options include Tape & Reel (TR) and Cut Tape (CT).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.96 | $3.96 |
| 10+ | $3.37 | $3.37 |
| 100+ | $2.90 | $2.90 |
| 250+ | $2.89 | $2.89 |
| 500+ | $2.33 | $2.33 |
| 1,000+ | $2.28 | $2.28 |
| 5,000+ | $2.24 | $2.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions.
2.54mm (0.100").
100VDC.
Through hole, right angle.
-40°C to 105°C.
Tin.
RoHS3 Compliant (unverified).
