| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Plating | |
| Contact Type | |
| Fastening Type | |
| Housing Color | |
| Housing Material | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Maximum Dimension A | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Standard Package Quantity | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

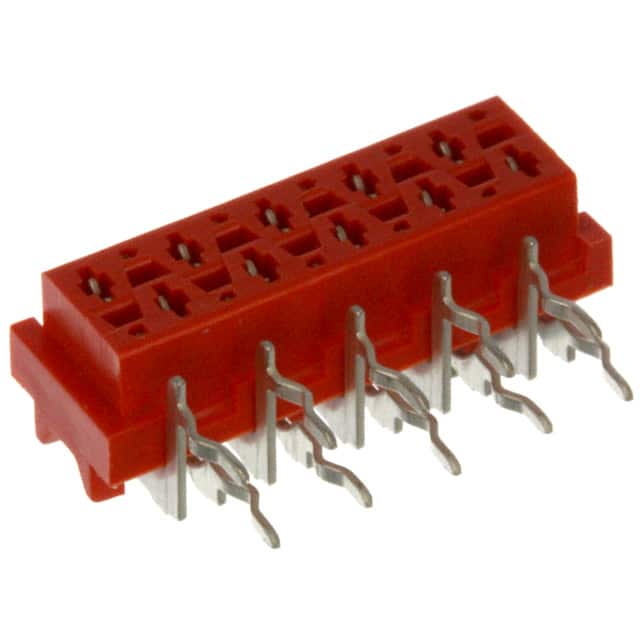

The TE Connectivity 8-215460-0 is a 10-position, 2-row rectangular receptacle from the Micro-MaTch family. It features a 2.54mm pitch and row spacing, with a right angle through-hole mounting style and kinked solder pins for secure board attachment.
The housing is made from glass-filled PBT polyester in red, with a UL94 V-0 flammability rating. Contacts are phosphor bronze with a tin over nickel finish. The connector supports board-to-board or cable applications with a push-pull fastening type.
Rated for 100VDC, this receptacle operates from -40°C to 105°C. The insulation height is 5.80mm, and contact length is 3.10mm. Available in box packaging of 250 units or reel packaging of 2500 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.08 | $2.08 |
| 10+ | $1.77 | $1.77 |
| 100+ | $1.51 | $1.51 |
| 250+ | $1.43 | $1.43 |
| 500+ | $1.32 | $1.32 |
| 1,000+ | $1.25 | $1.25 |
| 2,500+ | $1.21 | $1.21 |
| 5,000+ | $1.16 | $1.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 10 positions arranged in 2 rows.
The contact pitch is 2.54mm (0.100") and the row spacing is also 2.54mm.
The voltage rating is 100VDC.
It uses through-hole, right angle mounting.
The operating temperature range is -40°C to 105°C.
The housing is made of glass-filled PBT polyester with a UL94 V-0 flammability rating.
