| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,250 pcs
|
7250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Design | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Plating Thickness (Minimum/Maximum) | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Flammability Rating | |
| Height | |
| Housing Color | |
| Housing Material | |
| Insulation Color | |
| Insulation Height | |
| Insulation Resistance | |
| Length | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Packaging Method | |
| Packaging Quantity | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Method | |
| Termination Post Length | |
| Voltage Rating | |
| Voltage Rating (Nominal) |

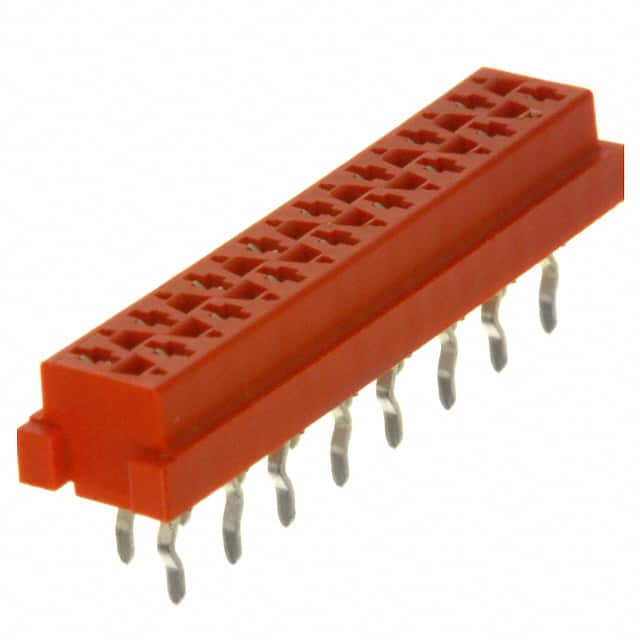

The TE Connectivity 8-215079-6 is a 16-position receptacle connector from the Micro-MaTch series, designed for board-to-board interconnections. It features a 1.27mm pitch and through hole termination with kinked pins for secure solder attachment. The housing is made of red polyester GF with a UL94 V-0 flammability rating, ensuring durability and safety.
The contacts are dual-beam forked design made of phosphor bronze with tin over nickel plating, rated for 1.5A per contact. The connector supports 100VAC/VDC operation and has an insulation resistance of 1000 MΩ. It operates over a temperature range of -40°C to 105°C, making it suitable for industrial environments.
Packaged in box of 250 units, this connector is RoHS compliant and suitable for signal and low-power transmission applications. The vertical orientation and push-pull fastening type facilitate easy assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.59 | $2.59 |
| 10+ | $2.20 | $2.20 |
| 100+ | $1.87 | $1.87 |
| 250+ | $1.75 | $1.75 |
| 1,000+ | $1.56 | $1.56 |
| 2,500+ | $1.52 | $1.52 |
| 5,000+ | $1.37 | $1.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions.
1.27mm (0.05 inches).
1.5A per contact.
100VAC and 100VDC.
Through hole.
-40°C to 105°C.
Polyester GF, red color, UL94 V-0 rated.
