| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,750 pcs
|
1750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

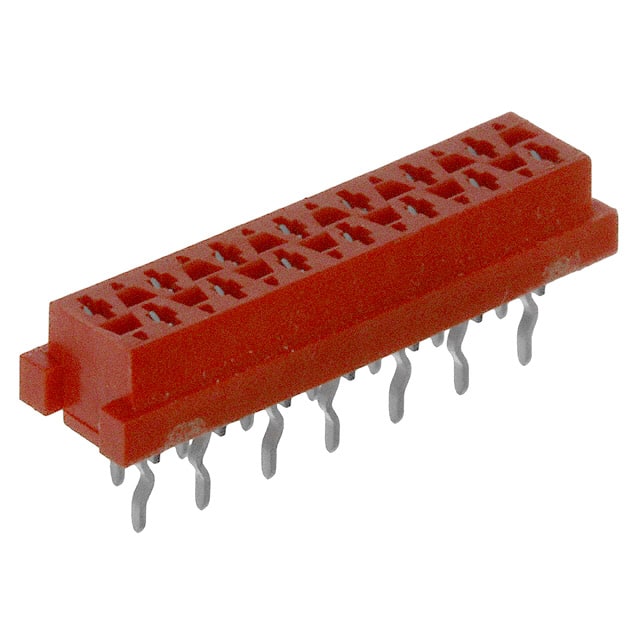

The TE Connectivity Micro-MaTch 8-215079-4 is a 14-position rectangular receptacle connector designed for board-to-board or cable connections. It features a 2.54mm pitch with 2 rows of forked contacts, all loaded, and a through hole mounting style with kinked pin solder termination.
The connector is rated for 100VDC and operates over a temperature range of -40°C to 105°C. The insulation is red, molded from UL94 V-0 rated material. Contact finish is tin. The insulation height is 4.00mm and contact length is 3.10mm.
This connector is part of the Micro-MaTch series from TE Connectivity, known for reliable interconnections in compact designs. The push-pull fastening type ensures secure mating. Suitable for various applications requiring a durable and space-saving connector.
14 positions, all loaded.
2.54mm (0.100 inches).
Through hole with kinked pin solder termination.
100VDC.
-40°C to 105°C.
Push-pull.
Tin.
