| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27,000 pcs
|
27000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Failure Rate | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

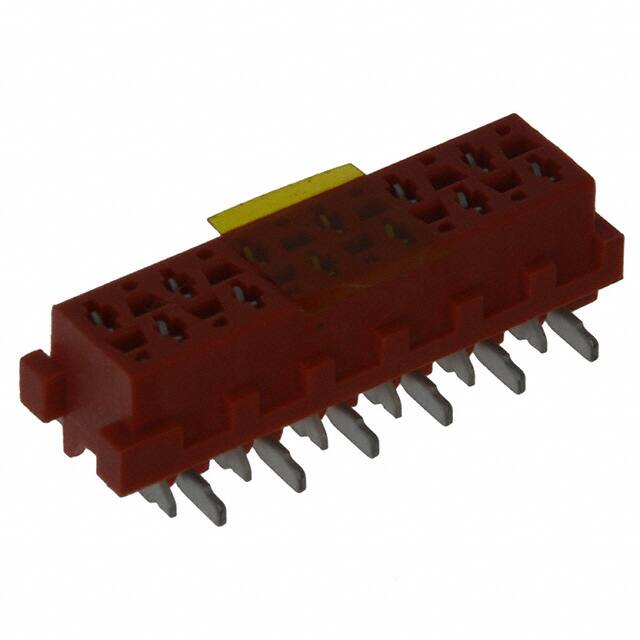

The TE Connectivity 8-188275-2 is a Micro-MaTch series 12 position receptacle connector designed for board-to-board or cable applications. It features a push-pull fastening type, two rows of forked contacts with a pitch of 2.54mm (0.100") and row spacing of 2.54mm (0.100"), all positions loaded.
This surface mount connector is terminated by solder and includes pick and place features for automated assembly. The red insulation has a height of 5.30mm (0.209") and is rated UL94 V-0 for flammability. Contacts are finished with tin.
Rated for 100 VDC operation, the connector operates over a temperature range of -40°C to 105°C. It is part of the Micro-MaTch family from TE Connectivity, suitable for reliable interconnections in a variety of electronic equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.67 | $2.67 |
| 10+ | $2.37 | $2.37 |
| 25+ | $2.31 | $2.31 |
| 100+ | $2.08 | $2.08 |
| 250+ | $1.78 | $1.78 |
| 500+ | $1.64 | $1.64 |
| 900+ | $1.59 | $1.59 |
| 4,500+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm (0.100").
The voltage rating is 100 VDC.
It is a surface mount connector with solder termination.
It is a 12 position receptacle with 2 rows, all positions loaded.
The operating temperature range is -40°C to 105°C.
