| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
952 pcs
|
952 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Assembly Length | |
| China RoHS | |
| Circuit Application | |
| Circular Connector Contact Type | |
| Circular Connector Insulation Material Type | |
| Connector Type | |
| Contact Current Rating (Max) | |
| Contacts Preloaded | |
| Current Rating (Amps) | |
| ELV | |
| Fastening Type | |
| Halogen Free | |
| Hermetically Sealed | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mating Retention | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Operating Temperature Range | |
| Operating Voltage | |
| Orientation | |
| Packaging Quantity | |
| Primary Material | |
| Reverse Gender | |
| Sealable | |
| Shell Base Material | |
| Shell Finish | |
| Shell Material | |
| Shell Plating Material | |
| Shielded | |
| Shielding | |
| Solder Process Capability | |
| Termination | |
| UL Flammability Rating | |
| Voltage Rating | |
| Wire size |

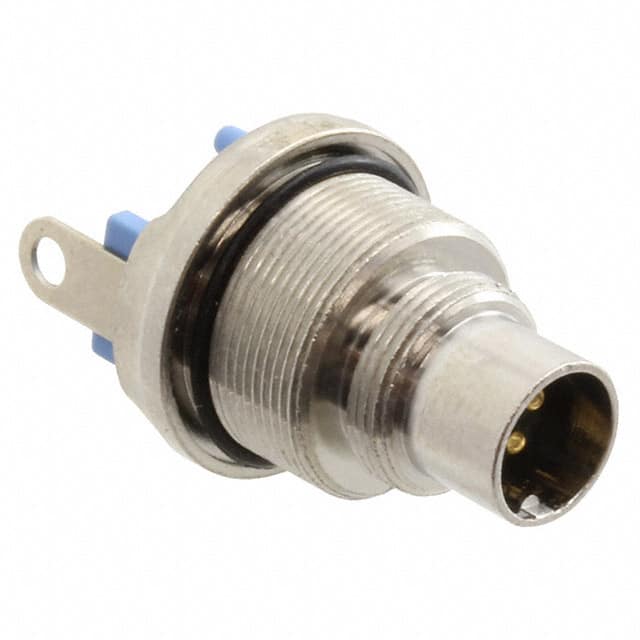

The TE Connectivity 8-1437719-7 is a 5 position circular connector plug from the Triad 01 series. It features male pins (reverse gender) with solder cup termination, designed for panel mount installation using a bulkhead front side nut. The connector is keyed for correct orientation and uses a threaded coupling mechanism for secure mating.
The shell is made of brass with a Tribor finish and nickel plating, providing durability and corrosion resistance. The insulator is PBT with UL94 V-2 flammability rating. Contacts are preloaded and include mating retention for reliable connection. The connector is sealable and rated IP65 for dust and water resistance.
Electrical ratings include 3A contact current and 60VAC operating voltage, suitable for signal applications. The operating temperature range is -40°C to 80°C. The connector is not shielded per the datasheet. It is RoHS3 compliant with REACH unaffected and MSL 1.
Packaged in quantities of 25 pieces, this connector is suitable for wire-to-board panel mount applications requiring a compact, reliable circular interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $34.34 | $34.34 |
| 10+ | $31.79 | $31.79 |
| 25+ | $29.79 | $29.79 |
| 50+ | $28.68 | $28.68 |
| 250+ | $28.10 | $28.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
3 A.
60 VAC.
Panel mount with bulkhead front side nut.
IP65 - Dust Tight, Water Resistant.
Solder cup.
Threaded.
