| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,400 pcs
|
6400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Termination Style |

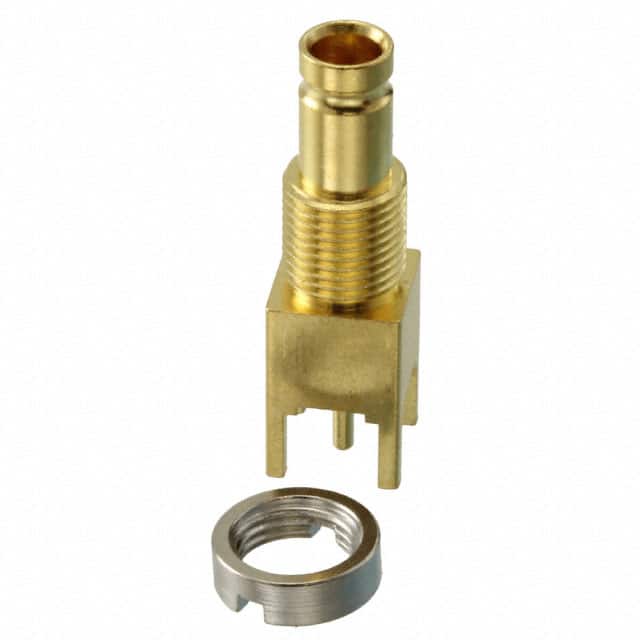

The TE Connectivity 8-1393670-3 is a 1.0/2.3 coaxial connector configured as a jack with a female socket contact. It features a 75 Ohm impedance and supports frequencies up to 2 GHz, making it suitable for RF signal applications.
This connector is designed for panel mount installation with a bulkhead front side nut mounting feature. It uses a push-pull fastening mechanism and offers solder terminations for both the center contact and shield. The center contact is made of beryllium copper and bronze.
The single-port design supports through hole mounting to the PCB, providing a reliable connection for coaxial cable assemblies in telecommunications, broadcast, and test equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.12 | $12.12 |
| 10+ | $10.31 | $10.31 |
| 25+ | $9.68 | $9.68 |
| 50+ | $9.22 | $9.22 |
| 100+ | $8.78 | $8.78 |
| 250+ | $8.10 | $8.10 |
| 400+ | $8.08 | $8.08 |
| 1,200+ | $8.07 | $8.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 75 Ohms.
The maximum frequency is 2 GHz.
It uses panel mount with through hole and a bulkhead front side nut.
The fastening type is push-pull.
Both the center contact and shield are terminated by soldering.
The center contact is made of beryllium copper and bronze.
