| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Aging | |
| Automotive Grade | |
| Base Resonator | |
| Current | |
| Current Consumption | |
| Duty Cycle | |
| Enable Voltage High | |
| Enable Voltage Low | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output | |
| Output Load | |
| Output Voltage High | |
| Output Voltage Low | |
| Package / Case | |
| Packaging Method | |
| Phase Jitter, RMS | |
| Rise & Fall Time | |
| SVHC Present | |
| Start-up Time | |
| Storage Temperature | |
| Storage Temperature Range | |
| Supply Voltage | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

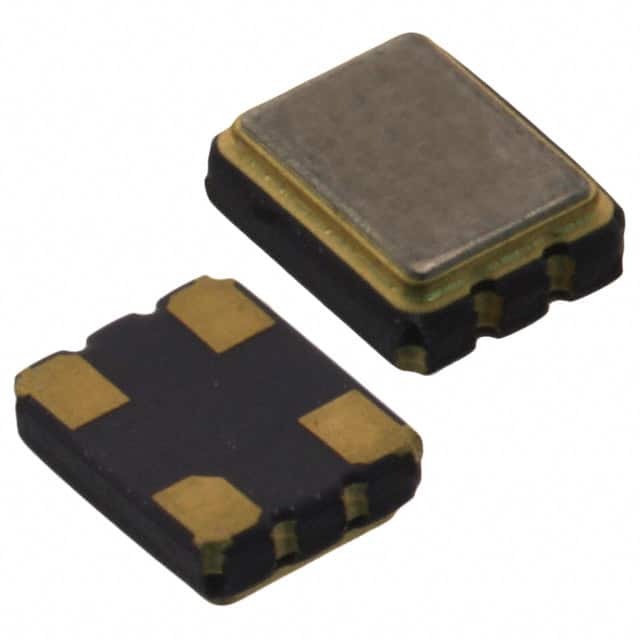

The TXC 7X-19.200MBA-T is a crystal-based XO (standard) oscillator with a frequency of 19.2 MHz. It provides a CMOS output with enable/disable function, operating from a 3.3V supply voltage. The oscillator maintains a frequency stability of ±25 ppm over the -10°C to +70°C operating temperature range.
Electrical characteristics include a maximum current consumption of 20 mA, 45% to 55% duty cycle, and 8 ns rise/fall time. The device features a tri-state enable/disable function with logic high enabling output. Phase jitter is limited to 1 ps RMS (12 kHz to 20 MHz integration).
The oscillator is housed in a 4-SMD, no lead ceramic package measuring 3.2 mm x 2.5 mm x 1.1 mm, suitable for surface mount assembly. The package is RoHS compliant and lead-free (verified per datasheet).
Typical applications include audio/video, gaming, printers, IP cameras, networking, and storage equipment. The 7X series is designed for use in PCI-E, USB, WLAN, Ethernet, and SATA interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.03 | $2.03 |
| 10+ | $1.77 | $1.77 |
| 25+ | $1.61 | $1.61 |
| 100+ | $1.54 | $1.54 |
| 250+ | $1.43 | $1.43 |
| 500+ | $1.39 | $1.39 |
| 1,000+ | $1.33 | $1.33 |
| 3,000+ | $1.20 | $1.20 |
| 6,000+ | $1.18 | $1.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.3 V.
4-SMD, No Lead.
-10°C to +70°C.
RoHS3 compliant (unverified, treat as low confidence).
±25 ppm.
CMOS.
5 ms maximum.
