| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
367 pcs
|
367 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging | |
| Base Resonator | |
| Current | |
| Current Consumption | |
| Duty Cycle | |
| Enable Voltage High | |
| Enable Voltage Low | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output | |
| Output Load | |
| Output Type | |
| Output Voltage High | |
| Output Voltage Low | |
| Phase Jitter | |
| Rise & Fall Time | |
| SVHC Present | |
| Start-up Time | |
| Storage Temperature Range | |
| Supply Voltage | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

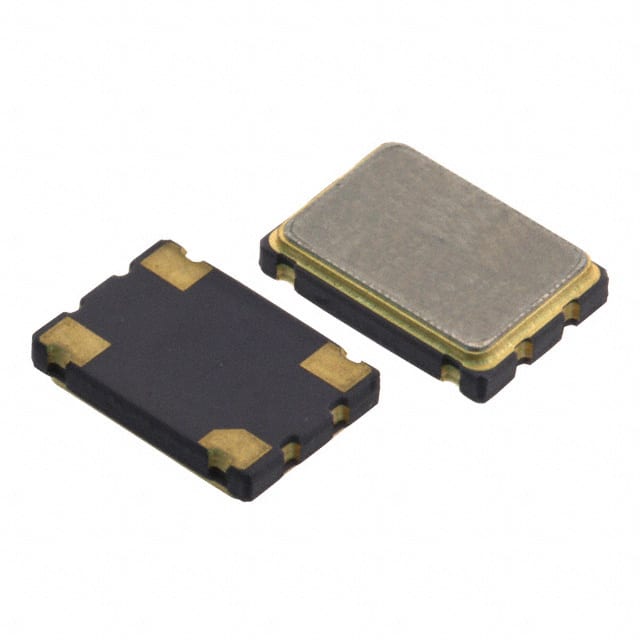

The TXC 7W-6.000MBA-T is a surface-mount crystal oscillator from the 7W series. It generates a 6 MHz clock signal with CMOS output. The oscillator operates from a 3.3V supply voltage and features ±25ppm frequency stability over an operating temperature range of -10°C to 70°C.
This XO (Standard) oscillator includes an enable/disable function, allowing control of the output. The device is packaged in a 4-SMD, no lead package measuring 7.00mm x 5.00mm x 1.42mm. It is designed for use in applications such as networking, storage, and computer peripherals.
The oscillator offers a duty cycle of 40% to 60%, a maximum start-up time of 5 ms, and a maximum rise/fall time of 8 ns. It drives a 15 pF output load. The device is RoHS compliant and lead-free as per the datasheet.
3.3 V nominal.
4-SMD, No Lead package measuring 7.00mm x 5.00mm x 1.42mm (height).
-10°C to 70°C.
Yes, RoHS3 compliant (unverified per datasheet).
±25 ppm.
CMOS.
40% to 60%.
