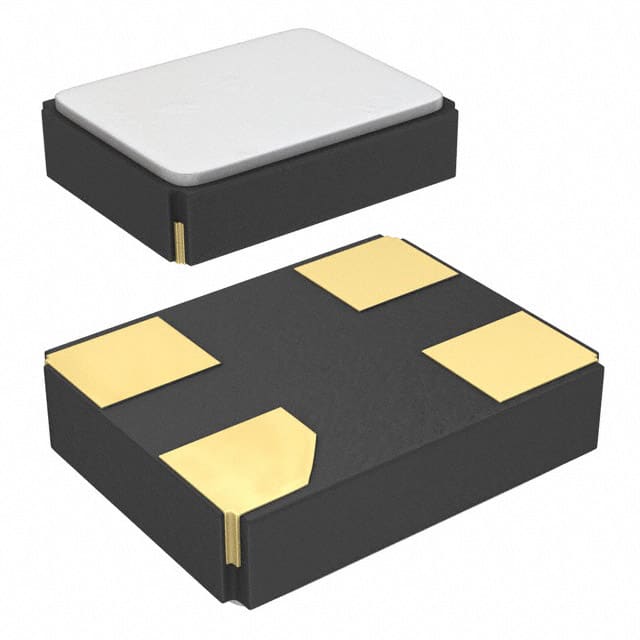

The TXC 7V-24.000MAAE-T is a 24MHz fundamental mode crystal in a compact 4-SMD, no lead package measuring 3.20mm x 2.50mm x 0.90mm. It offers a frequency tolerance of ±30ppm at 25°C and frequency stability of ±30ppm over the -20°C to +70°C operating temperature range. The load capacitance is 12pF, with a maximum equivalent series resistance (ESR) of 60Ω. Designed for surface mount assembly, this crystal supports a drive level of 1 to 50µW and has a shunt capacitance of 3pF maximum. Aging is limited to ±3ppm in the first year. The component is RoHS compliant with an exemption for lead content. Typical applications include consumer electronics, notebooks, hard disk drives, PCs, TVs, game consoles, and cameras.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.71 | $0.71 |
| 10+ | $0.61 | $0.61 |
| 25+ | $0.56 | $0.56 |
| 100+ | $0.53 | $0.53 |
| 250+ | $0.51 | $0.51 |
| 500+ | $0.48 | $0.48 |
| 1,000+ | $0.46 | $0.46 |
| 3,000+ | $0.40 | $0.40 |
| 6,000+ | $0.38 | $0.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The package is 4-SMD, No Lead, with dimensions 3.20mm x 2.50mm x 0.90mm.
The operating temperature range is -20°C to +70°C.
The datasheet states 'Contains Pb, exempted by RoHS directive', indicating it is RoHS compliant with a lead exemption.
The frequency tolerance is ±30ppm at 25°C.
The required load capacitance is 12pF.
The maximum ESR is 60Ω for the 16-54 MHz range.
Aging is ±3ppm maximum in the first year at 25°C ±3°C.
