| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,648 pcs
|
1648 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging | |
| Drive Level | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Packaging Method | |
| Shunt Capacitance | |
| Storage Temperature Range | |
| Tape & Reel | |
| Type | |
| Width | |
| equivalent_series_resistance (Maximum @ 10 ~ 12 MHz) | |
| equivalent_series_resistance (Maximum @ 20 ~ 64 MHz) |

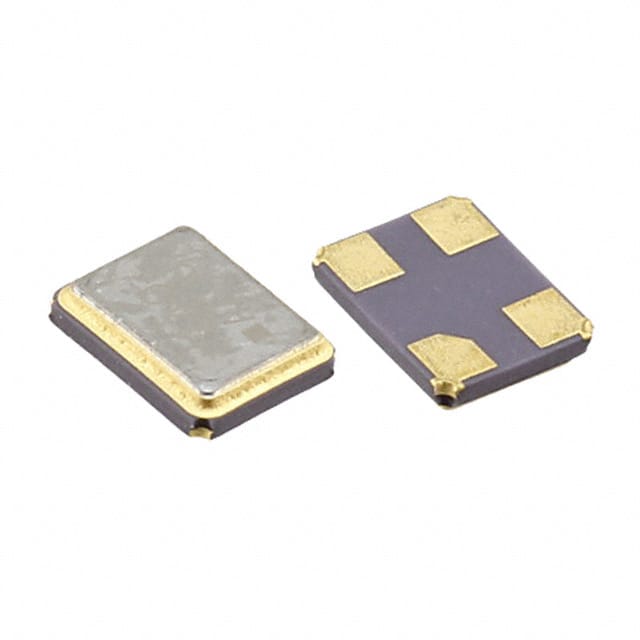

The TXC 7M26000028 is a 26 MHz fundamental mode crystal designed for surface mount applications. It offers a frequency tolerance of ±10 ppm at 25°C and frequency stability of ±10 ppm over -20°C to +70°C. The crystal requires a 7.5 pF load capacitance and has a maximum equivalent series resistance of 50 Ω for the 20-64 MHz band.
Housed in a compact 3.2 x 2.5 x 0.8 mm ceramic SMD package with no leads, this crystal is suitable for space-constrained designs. It operates over a temperature range of -20°C to +75°C and can be stored from -40°C to +85°C. The drive level is typically 100 μW with a maximum shunt capacitance of 3 pF.
Typical applications include Bluetooth, wireless LAN, consumer electronics, and computer peripherals where a stable clock source is required. The part is RoHS compliant and lead-free.
| Qty | Low | High |
|---|---|---|
| 3,000+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency is 26 MHz.
The frequency tolerance is ±10 ppm at 25°C.
The required load capacitance is 7.5 pF.
The operating temperature range is -20°C to +75°C.
The package is 4-SMD, No Lead, measuring 3.2 x 2.5 x 0.8 mm.
Yes, it is listed as RoHS3 compliant and lead-free.
