| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
626 pcs
|
626 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Frequency | |
| Frequency Stability | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output | |
| Package / Case | |
| Supply Current | |
| Supply Voltage | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

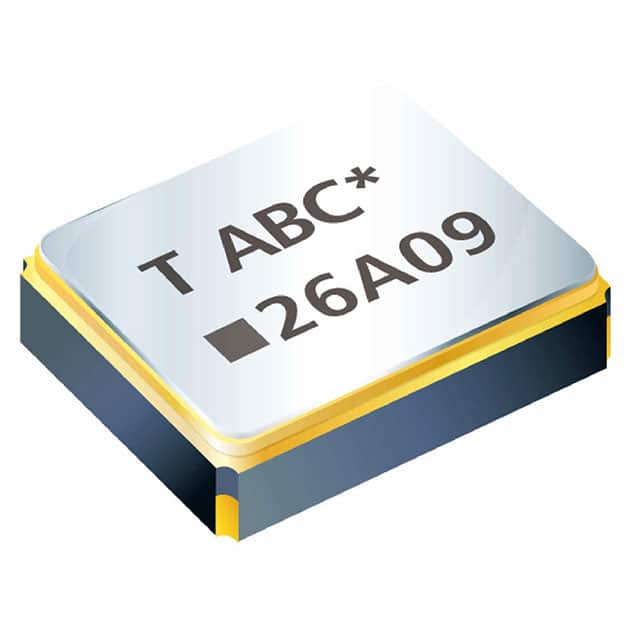

The TXC Corporation 7L-16.368MDG-T is a temperature compensated crystal oscillator (TCXO) that provides a stable 16.368 MHz output frequency. It features a clipped sine wave output and operates from a 1.8V supply voltage, drawing a typical current of 2mA. The frequency stability is rated at ±2ppm maximum over the full operating temperature range of -40°C to 85°C.
This oscillator is housed in a compact 4-SMD, no lead package measuring 2.50mm x 2.00mm x 0.80mm, making it suitable for space-constrained surface mount applications. The TCXO design ensures minimal frequency drift due to temperature variations, making it ideal for applications requiring precise timing.
Typical applications include wireless communication modules, GPS receivers, and other portable electronic devices where a stable reference clock is essential. The part is RoHS3 compliant and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 3,000+ | $1.99 | $1.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal frequency is 16.368 MHz.
The maximum frequency stability is ±2 ppm.
The nominal supply voltage is 1.8V.
The operating temperature range is -40°C to 85°C.
The output is a clipped sine wave.
The package is 4-SMD, no lead, measuring 2.50mm x 2.00mm x 0.80mm.
It is listed as RoHS3 compliant (unverified).
