| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Base Resonator | |
| Current | |
| Current - Supply | |
| Frequency | |
| Function | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Output | |
| Package / Case | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage Supply | |
| Width |

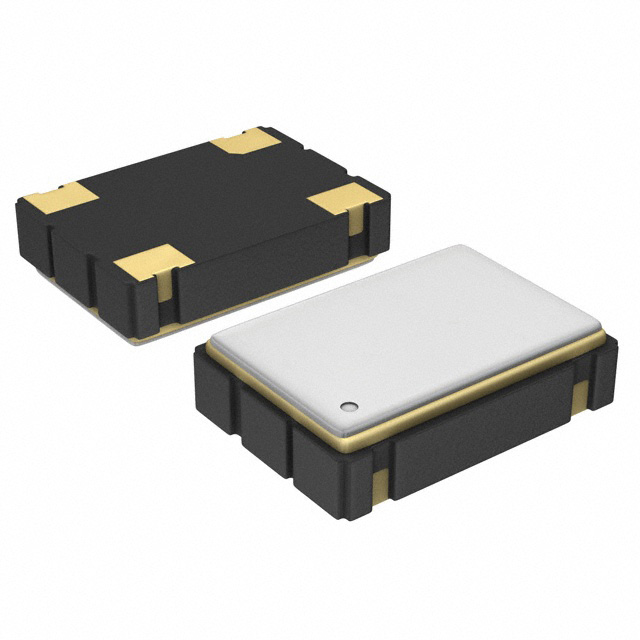

The 7C40000192 is a standard crystal oscillator (XO) from TXC Corporation, designed to provide a stable 40 MHz clock signal. It operates from a 2.8V supply voltage with a typical supply current of 10 mA. The output is CMOS logic, and the device features an Enable/Disable function for power management or output control. The base resonator is a crystal, ensuring frequency accuracy.
This oscillator is housed in a compact 4-SMD, No Lead package measuring 5.00 mm x 3.20 mm with a height of 1.40 mm, suitable for automated surface mount assembly. The surface mount design allows for efficient use of PCB space in dense electronic assemblies.
Applications include clock generation for microcontrollers, digital signal processors, and other logic circuits in telecommunications, networking, consumer electronics, and industrial equipment. The device is listed as RoHS3 compliant, though this status is not verified from the manufacturer. No datasheet is currently available for this part.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.49 | $1.49 |
| 10+ | $1.29 | $1.29 |
| 25+ | $1.22 | $1.22 |
| 100+ | $1.11 | $1.11 |
| 250+ | $1.03 | $1.03 |
| 1,000+ | $0.96 | $0.96 |
| 2,000+ | $0.89 | $0.89 |
| 5,000+ | $0.85 | $0.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 2.8V.
The package is 4-SMD, No Lead.
It is listed as RoHS3 Compliant, but this status is unverified and should be treated as low confidence.
The output logic is CMOS.
The frequency is 40 MHz.
Yes, it has an Enable/Disable function.
The mounting type is Surface Mount.
