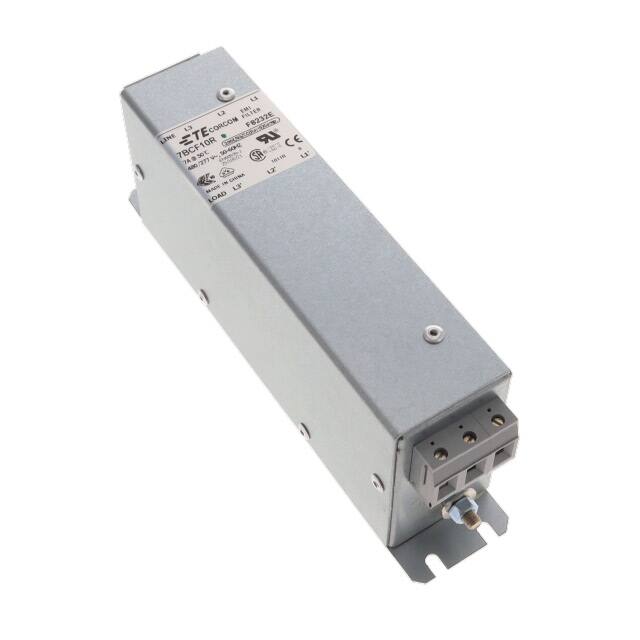

7BCF10R The 7BCF10R is a 7A, 277V three phase (Delta) power line filter from TE Connectivity. It features a two stage configuration, chassis mount, and terminal block termination.
Mfr Part #:

7BCF10R

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The 7BCF10R is a 7A, 277V three phase (Delta) power line filter from TE Connectivity. It features a two stage configuration, chassis mount, and terminal block termination.
✓ Total Stock: 1 pcs
$ Price Range: $175.62

7BCF10R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

7BCF10R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Configuration
Current
Filter Type
Frequency
Inductance
Lead Style
Mounting Type
Operating Temperature
Tape & Reel
Termination Style
Voltage
View Similar Products (0)

7BCF10R Description

Short technical summary and product information.

The 7BCF10R is a three-phase (Delta) power line filter module designed for general purpose EMI suppression. It is rated for 7A continuous current at 277VAC with a frequency range of 50/60Hz. The filter employs a two-stage configuration with an inductance of 2.43mH per phase, providing effective attenuation of common-mode and differential-mode noise.



This filter is chassis mounted and terminated with a terminal block, simplifying installation in industrial equipment. It operates over a temperature range of -10°C to 50°C, making it suitable for a variety of indoor environments. The component is approved by CSA, UR, and VDE, ensuring compliance with international safety standards.



Designed for three-phase power systems, the 7BCF10R is ideal for use in motor drives, industrial machinery, and commercial power distribution equipment. Its compact chassis mount design allows for easy integration into existing enclosures. The filter does not require additional cooling under normal operating conditions.



TE Connectivity's 7BCF10R is a reliable choice for reducing electromagnetic interference in three-phase AC power lines. With its robust construction and verified safety approvals, it meets the needs of engineers seeking a dependable filtering solution.

7BCF10R Quick Information

Product Type: Power Line Filter Module
Series: BCF
Canonical Name: 7BCF10R Power Line Filter, 7A, Three Phase (Delta), Two Stage
Subcategory: Three Phase Power Line Filter

7BCF10R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

7BCF10R Estimated Pricing

Qty Low High
1+ $175.62 $175.62

Estimated market price range - modelled values for guidance only, not live distributor offers.

7BCF10R Features

  • Three phase (Delta) filter configuration.
  • Two stage EMI filtering design.
  • Rated for 7A at 277VAC.
  • Chassis mount with terminal block.
  • Operates from -10°C to 50°C.

7BCF10R Applications

  • Filter for general purpose three-phase systems.
  • Used in industrial three-phase equipment.
  • Suitable for commercial power line filtering.

7BCF10R FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the 7BCF10R?

277V

What is the mounting type?

Chassis Mount

What is the operating temperature range?

-10°C to 50°C

Is the 7BCF10R RoHS compliant?

Yes, RoHS3 compliant (unverified).

What are the approval agencies?

CSA, UR, VDE

What is the filter configuration?

Two stage

What is the current rating?

7A
