| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,988 pcs
|
9988 pcs | On Request | 1 | On Request | On Request | 1026 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coating | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Inductance | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Storage Temperature | |
| Temperature Rise | |
| Termination Style | |
| Tolerance | |
| Type |

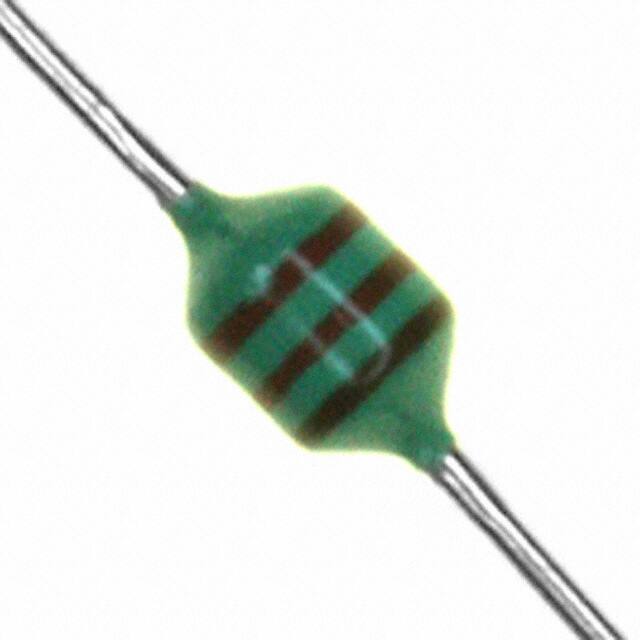

The Bourns 79F221K-TR-RC is a conformal coated RF choke in the 79F series, offering 220 µH inductance with ±10% tolerance. It maintains a minimum quality factor of 40 at 790 kHz and a minimum self-resonant frequency of 5 MHz. The device is rated for a maximum DC resistance of 20 Ω and a maximum DC current of 35 mA, with a typical temperature rise of 35 °C at rated current.
The ferrite-core inductor is unshielded and uses enamelled copper wire with epoxy resin coating. It is designed for through-hole mounting in an axial package measuring 0.100" diameter by 0.160" length (2.54 mm x 4.06 mm). Terminal plating is Cu/Ni/Sn, and the component operates over -55 °C to 105 °C.
The 79F221K-TR-RC is supplied in ammo-pack packaging with 2,000 pieces per package. Its inductance is tested at 790 kHz, and the part is RoHS compliant per Directive 2011/65/EU.
220 µH.
±10%.
35 mA maximum.
20 Ω maximum.
5 MHz minimum.
Axial through-hole package measuring 0.100" x 0.160" (2.54 mm x 4.06 mm).
-55 °C to 105 °C.
