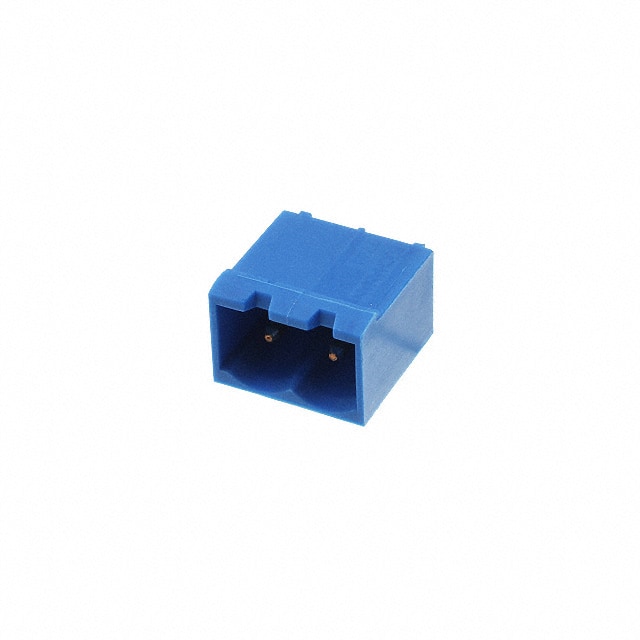

796700-2 TE Connectivity 796700-2 is a 2-position, single-level Eurostyle terminal block header with a 5.00mm pitch, right angle orientation, and through hole solder termination.
Mfr Part #:

796700-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 796700-2 is a 2-position, single-level Eurostyle terminal block header with a 5.00mm pitch, right angle orientation, and through hole solder termination.
✓ Total Stock: 900 pcs

796700-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
900 pcs
On Request
900 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

796700-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
SVHC Present
Tape & Reel
Termination Style
Type
Voltage
View Similar Products (0)

796700-2 Description

Short technical summary and product information.

The TE Connectivity 796700-2 is a Eurostyle terminal block header designed for reliable wire-to-board connections in industrial and commercial equipment. This header features 2 positions arranged in a single level with a 5.00mm pitch, providing a compact yet robust interface for power and signal distribution.



Key electrical ratings include a voltage rating of 300V and a current rating of 15A, suitable for moderate power applications. The header is configured with male pins in a shrouded (4 side) design, offering protection and polarization during mating. The right angle orientation allows for low-profile connections parallel to the PCB surface.



Mechanically, the component uses through hole mounting with solder termination for secure attachment to printed circuit boards. The housing is colored blue, and the contact mating surface is finished with tin. The operating temperature range spans -40°C to 110°C, accommodating a wide variety of environmental conditions.

796700-2 Quick Information

Product Type: Terminal Block Header
Series: TERMI-BLOK
Canonical Name: TE Connectivity 796700-2 Eurostyle Terminal Block Header, 2 Position, 5.00mm Pitch, Right Angle, Through Hole, Shrouded
Subcategory: Terminal Block Headers

796700-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

796700-2 Features

  • 2 position single level terminal block header.
  • 5.00mm pitch for compact wiring density.
  • Rated 300V and 15A for moderate power.
  • Right angle through hole solder mounting.
  • Shrouded header with tin plated contacts.

796700-2 Applications

  • Industrial control panel wiring interfaces.
  • Power supply and distribution connections.
  • Building automation and HVAC equipment.
  • Instrumentation and measurement systems.

796700-2 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 796700-2 have?

The 796700-2 has 2 positions arranged in a single level.

What is the pitch of the TE Connectivity 796700-2 header?

The pitch is 5.00mm (0.197 inches).

What are the voltage and current ratings for the 796700-2?

The voltage rating is 300V and the current rating is 15A.

What is the mounting type for the 796700-2?

The mounting type is through hole with solder termination.

What is the operating temperature range of the 796700-2?

The operating temperature range is -40°C to 110°C.

Is the 796700-2 RoHS compliant?

The part is listed as RoHS3 compliant, but this information is unverified and should be confirmed with the manufacturer.

What is the lifecycle status of the 796700-2?

The part is obsolete. A product change notification (PCN E-17-012525) indicates discontinuation with a last order date of 08-DEC-2017.
