Mfr Part #:

796644-7

Name: 796644-7
Brand: TE Connectivity
SKU: 796644-7

Mfr Name: TE Connectivity

Description:

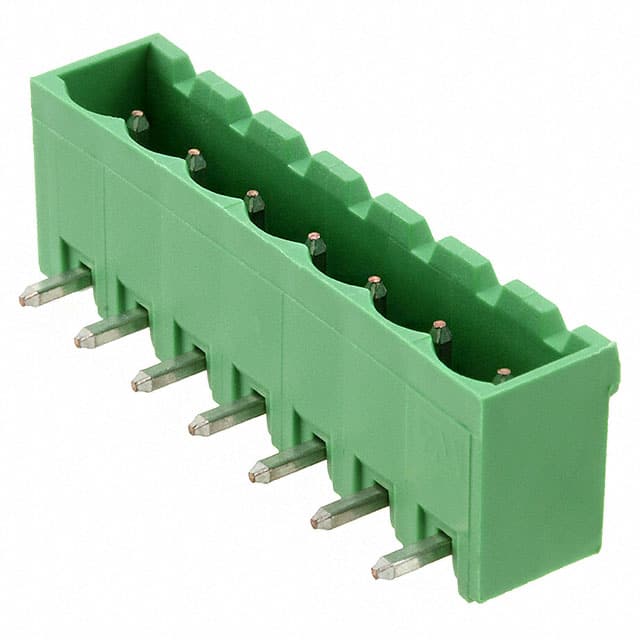

TERM BLOCK HDR 7POS 90DEG 5MM

Stock on Request

796644-7 Description

Short technical summary and product information.

TERM BLOCK HDR 7POS 90DEG 5MM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

3-796644-7

TE Connectivity AMP Connectors

TERM BLOCK HDR 7POS 90DEG 5MM

796864-7

TE Connectivity AMP Connectors

TERM BLOCK HDR 7POS 90DEG 5MM

Category	Headers, Plugs and Sockets
Manufacturer Name	TE Connectivity
Color	Green
Contact Mating Finish	Tin
Current	15 A
Header Orientation	90°, Right Angle
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	7
Operating Temperature	-40°C ~ 110°C
Pitch	0.197" (5.00mm)
Positions Per Level	7
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage	300 V
