| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Halogen Free | |
| Header Orientation | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage |

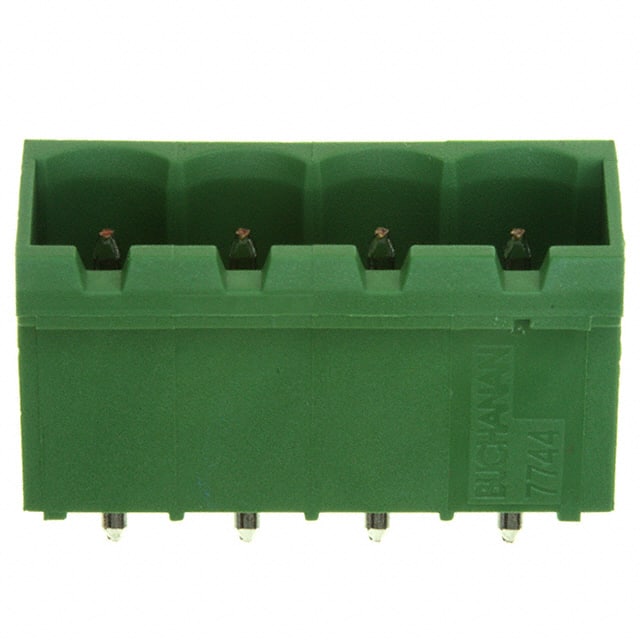

The TE Connectivity 796642-4 is a 4 position, single level, shrouded header designed for use with terminal blocks. It features a 5.00mm pitch and a vertical orientation, making it suitable for wire-to-board connections in industrial control, power distribution, and automation equipment.
This header is rated for 300V and 15A, with an operating temperature range of -40°C to 110°C. The contact mating finish is tin, and the housing is green. It uses through hole solder termination for reliable mechanical and electrical connections.
The shrouded design provides protection for the male pins and helps prevent mis-mating. This component is commonly used in PLCs, motor drives, and building automation systems where secure and organized wiring is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.93 | $1.93 |
| 10+ | $1.40 | $1.40 |
| 25+ | $1.16 | $1.16 |
| 50+ | $1.06 | $1.06 |
| 100+ | $0.84 | $0.84 |
| 300+ | $0.76 | $0.76 |
| 600+ | $0.74 | $0.74 |
| 5,100+ | $0.71 | $0.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 5.00mm (0.197 inches).
It has 4 positions.
Rated for 300V and 15A.
Through hole with solder termination.
-40°C to 110°C.
