| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23,000 pcs
|
23000 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

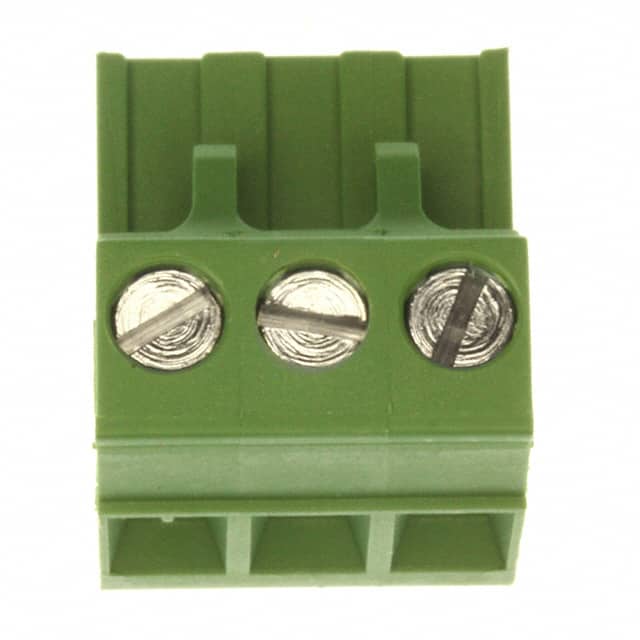

The TE Connectivity 796640-3 is a 3-position terminal block plug designed for free hanging (in-line) mounting. It features female socket contacts with a tin mating finish and a 180° wire entry angle. The plug uses a screw rising cage clamp termination system for secure wire connections. With a 5mm lead spacing, it accepts wire sizes from 0.05 to 3 mm². The electrical rating is 300V maximum and 15A maximum. Operating temperature range is -40°C to 110°C. The housing is green and includes retention latches (non-wire side) and side stacking features for modular assembly. This component is suitable for industrial control and power distribution applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.36 | $3.36 |
| 10+ | $2.40 | $2.40 |
| 25+ | $2.15 | $2.15 |
| 50+ | $1.93 | $1.93 |
| 100+ | $1.89 | $1.89 |
| 200+ | $1.65 | $1.65 |
| 600+ | $1.51 | $1.51 |
| 800+ | $1.40 | $1.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
5.00mm.
15A maximum.
300V maximum.
Free hanging (in-line).
0.05 to 3 mm².
-40°C to 110°C.
