| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

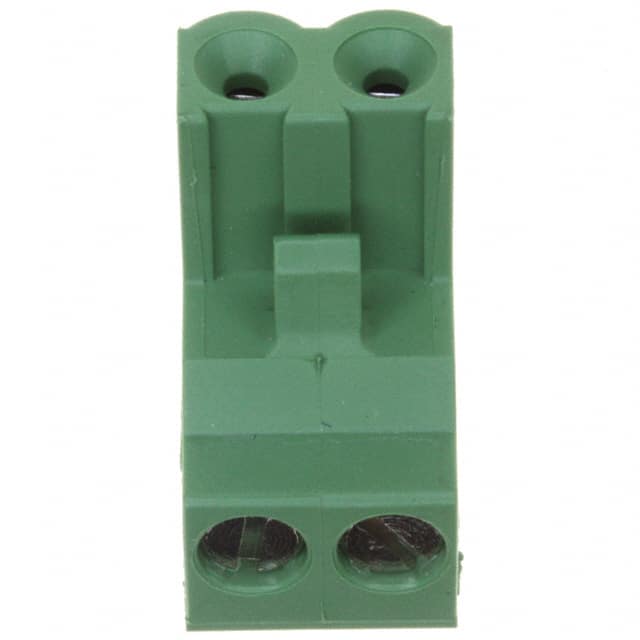

The TE Connectivity 796640-2 is a 2-position terminal block plug designed for use in wire-to-board or wire-to-wire connections. It features female socket contacts with a tin finish and a green housing. The plug uses a screw rising cage clamp termination method, accommodating wire sizes from 0.05 to 3 mm².
With a pitch of 5.00mm, this plug is suitable for applications requiring moderate density. It is rated for 15A current and 300V voltage, making it appropriate for industrial control, power distribution, and lighting systems. The operating temperature range is -40°C to 110°C.
The plug is free hanging (in-line) with a 180° wire entry. It includes retention latches on the non-wire side and supports side stacking for multi-position assemblies. The component is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.05 | $2.05 |
| 10+ | $1.48 | $1.48 |
| 25+ | $1.27 | $1.27 |
| 50+ | $1.17 | $1.17 |
| 100+ | $1.09 | $1.09 |
| 300+ | $0.95 | $0.95 |
| 600+ | $0.88 | $0.88 |
| 1,200+ | $0.83 | $0.83 |
| 5,100+ | $0.82 | $0.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
5.00mm (0.197 inches).
15 A.
300 V.
Free hanging (in-line).
Screw - rising cage clamp.
0.05 to 3 mm².
