| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
98 pcs
|
98 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Lead Spacing | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage |

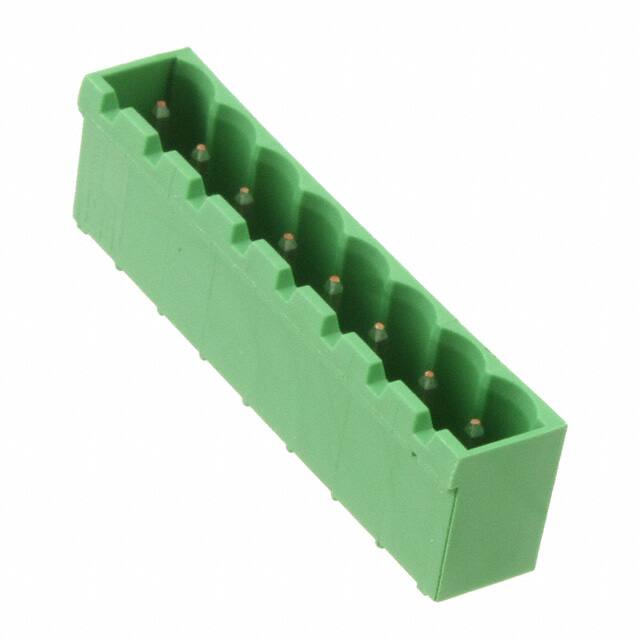

The TE Connectivity 796636-8 is a terminal block header designed for wire-to-board connections in industrial and commercial equipment. It features 8 positions arranged in a single level with a 5.08mm pitch, providing a compact and reliable interface for printed circuit boards.
This shrouded header (4-sided) uses a vertical orientation and through-hole mounting with solder termination, ensuring a secure mechanical and electrical connection. The green insulator and tin-plated contacts offer good conductivity and corrosion resistance for long-term reliability.
Rated for 300V and 15A, this header is suitable for power distribution and signal routing in control systems, instrumentation, and automation equipment. Its operating temperature range of -40°C to 110°C allows use in demanding environments.
The 5.08mm pitch is a common standard for terminal blocks, making this header compatible with a wide range of mating plugs and sockets. The shrouded design provides additional protection against accidental contact with live terminals.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.88 | $4.88 |
| 10+ | $3.52 | $3.52 |
| 20+ | $3.12 | $3.12 |
| 50+ | $2.87 | $2.87 |
| 100+ | $2.66 | $2.66 |
| 200+ | $2.45 | $2.45 |
| 1,000+ | $2.35 | $2.35 |
| 2,000+ | $1.95 | $1.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 796636-8 has 8 positions arranged in a single level.
The pitch is 5.08mm (0.200 inches).
The current rating is 15A.
The voltage rating is 300V.
The mounting type is through-hole with solder termination.
The operating temperature range is -40°C to 110°C.
The contact mating finish is tin.
