796634-7 The 796634-7 is a 7-position terminal block plug from TE Connectivity with a 5.08mm pitch and 300V/15A rating. It features a rising cage clamp termination and free hanging mounting.
Mfr Part #:

796634-7

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The 796634-7 is a 7-position terminal block plug from TE Connectivity with a 5.08mm pitch and 300V/15A rating. It features a rising cage clamp termination and free hanging mounting.
✓ Total Stock: 49 pcs
$ Price Range: $5.05 - $11.04

796634-7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
49 pcs
On Request
49 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

796634-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Tape & Reel
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

796634-7 Description

Short technical summary and product information.

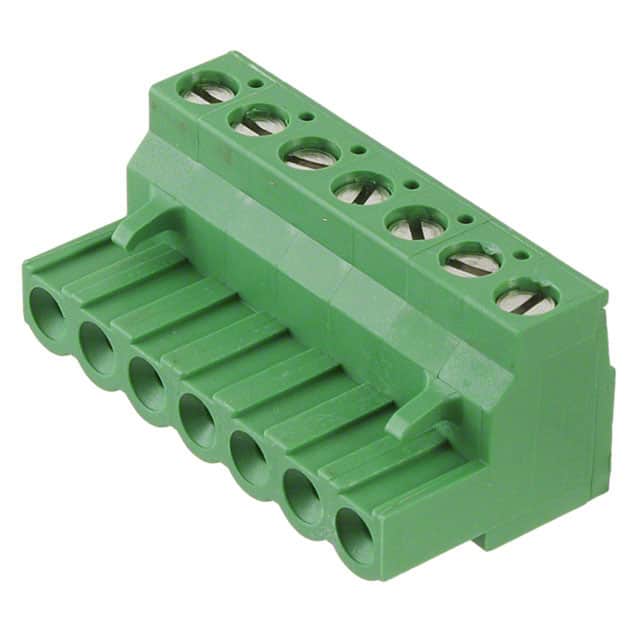

The 796634-7 is a plug, female sockets terminal block from TE Connectivity, part of their terminal block lineup. It has 7 positions in a single level with a pitch of 5.08mm. This plug accepts wire cross-sections from 0.05 to 3mm² and features a screw - rising cage clamp termination for secure wire connection. The operating temperature range is -40°C to 110°C. The mounting type is free hanging (in-line) with a 180° wire entry. Contact mating finish is tin. The color is green. Features include retention latches on the non-wire side for secure mating.

796634-7 Quick Information

Product Type: Terminal Block Plug
Canonical Name: TERM BLOCK PLUG 7POS STR 5.08MM
Subcategory: Headers, Plugs and Sockets

796634-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

796634-7 Estimated Pricing

Qty Low High
1+ $11.04 $11.04
10+ $5.77 $5.77
20+ $5.20 $5.20
50+ $5.06 $5.06
100+ $5.05 $5.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

796634-7 Features

  • 7 positions with 5.08mm pitch.
  • Rated for 300V and 15A.
  • Screw rising cage clamp termination.
  • Free hanging mounting with 180° wire entry.
  • Retention latches for secure mating.

796634-7 Applications

  • Used in industrial control panels.
  • Suitable for power distribution blocks.
  • Ideal for sensor and actuator connections.
  • Common in building automation wiring.

796634-7 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 796634-7 have?

7 positions.

What is the pitch of the 796634-7?

5.08mm (0.200 inches).

What is the current rating of the 796634-7?

15 A.

What is the voltage rating of the 796634-7?

300 V.

What is the mounting type of the 796634-7?

Free hanging (in-line).

What wire sizes does the 796634-7 accept?

Wire cross-section from 0.05 to 3 mm².

What is the operating temperature range?

-40°C to 110°C.
