| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
790 pcs
|
790 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Features | |
| Halogen Free | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| SVHC Present | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge or Range |

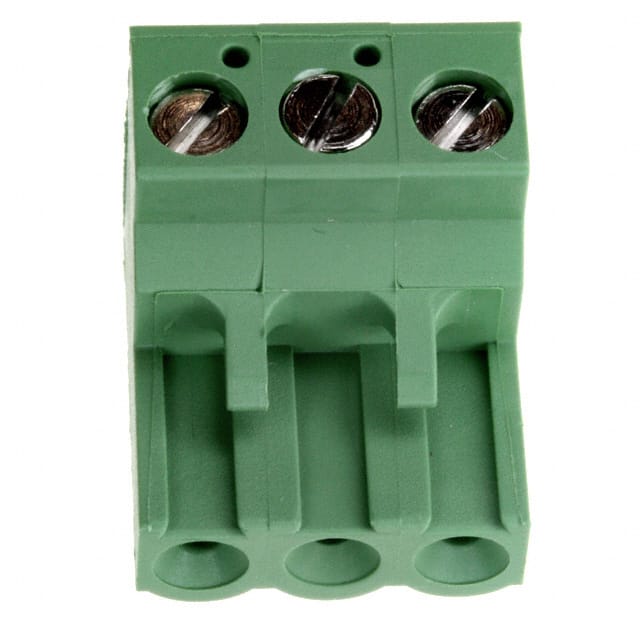

The TE Connectivity 796634-3 is a 3-position terminal block plug designed for use with 5.08mm pitch headers. It is a free hanging (in-line) plug with a screw rising cage clamp termination, suitable for wire sizes from 0.05 to 3 mm². The plug is rated for 15 A and 300 V, with an operating temperature range of -40°C to 110°C. The housing is green, and the contact mating finish is tin. Retention latches on the non-wire side provide secure mating. This component is suitable for power and signal connections in industrial control, building automation, and instrumentation equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.76 | $4.76 |
| 10+ | $3.16 | $3.16 |
| 25+ | $2.61 | $2.61 |
| 100+ | $2.43 | $2.43 |
| 200+ | $2.30 | $2.30 |
| 600+ | $1.70 | $1.70 |
| 800+ | $1.64 | $1.64 |
| 5,600+ | $1.18 | $1.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 3 positions.
The pitch is 5.08 mm (0.200").
It is rated for 15 A and 300 V.
It is free hanging (in-line).
Screw - Rising Cage Clamp.
It accepts 0.05 to 3 mm² wire.
-40°C to 110°C.
