| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Assembly Tools | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Plating Underplating | |
| Contact Plating Wiping Area | |
| Contact Type | |
| Current Rating | |
| Features | |
| Flammability Rating | |
| Insulation Material | |
| Insulation Resistance | |
| Keying Plug | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Strain Relief | |
| Temperature Rating | |
| UL Flammability | |
| Wire Gauge | |
| Wire Type | |
| Withstanding Voltage |

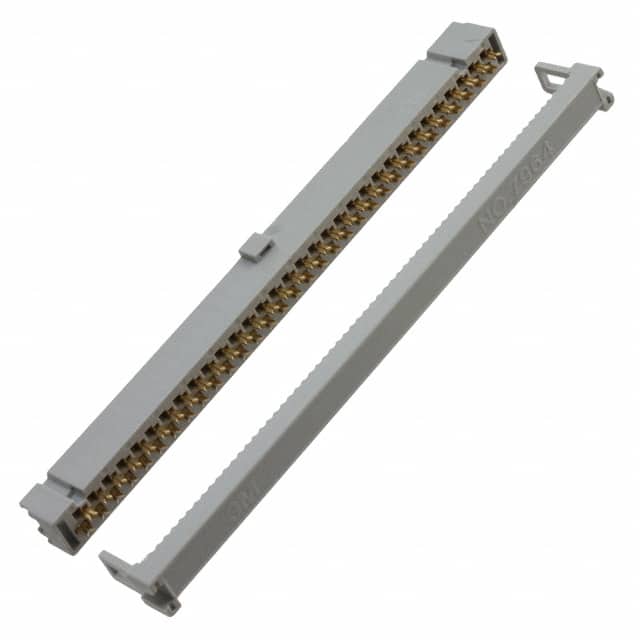

The 3M 7964-6500EC is a 64-position IDC wiremount socket from the 79 series, designed for reliable wire-to-board connections. It features a 2.54mm x 2.54mm grid with two rows of female socket contacts, each with a gold wiping area (30 μin) over nickel underplating for low contact resistance and corrosion resistance. The connector accepts 26-28 AWG solid or stranded wire in either discrete or ribbon cable configuration, terminated via IDC (Insulation Displacement Contact) technology.
Rated at 1 A current, the socket offers insulation resistance greater than 1×10⁹ Ω at 500 VDC and can withstand 1000 VRMS at sea level, ensuring robust electrical performance. The operating temperature range spans -55°C to +105°C, making it suitable for a variety of environments. The free-hanging (in-line) mounting style, combined with feed-through and polarizing key features, simplifies assembly and ensures correct orientation.
The housing is molded from gray glass-filled polyester (PBT) with a UL 94V-0 flammability rating, providing mechanical strength and flame retardance. Optional accessories include the 3448-7964 strain relief and 3435-0 keying plug, which are ordered separately. The connector mates with 3M headers, plugs, and pin strips for quick connect/disconnect capability.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.28 | $13.28 |
| 10+ | $12.02 | $12.02 |
| 20+ | $11.27 | $11.27 |
| 50+ | $10.73 | $10.73 |
| 100+ | $10.21 | $10.21 |
| 200+ | $9.45 | $9.45 |
| 500+ | $9.12 | $9.12 |
| 1,000+ | $8.68 | $8.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
64 positions in 2 rows.
2.54mm (0.100")
1 A.
1000 VRMS at Sea Level.
Free Hanging (In-Line).
26-28 AWG solid and stranded wire.
-55°C to +105°C.
