| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Type |

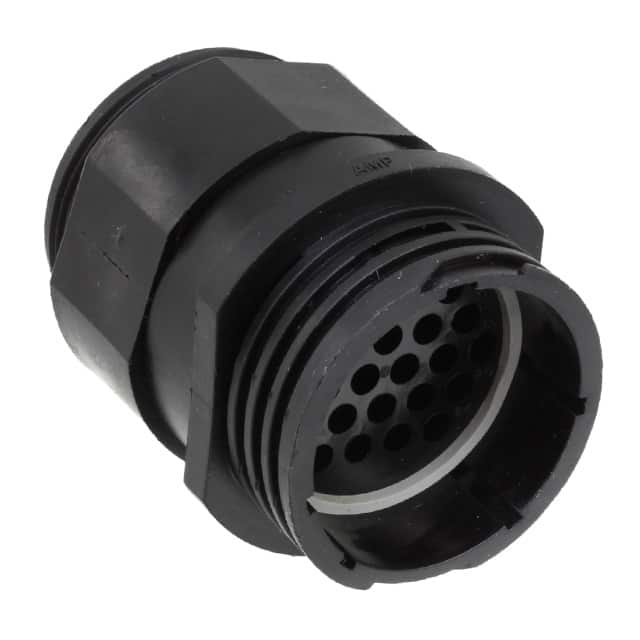

The TE Connectivity 796291-1 is a circular connector housing that serves as a receptacle for male pins. It accommodates 24 positions with contact size 16, using crimp contacts. The housing is made of polyamide (nylon) in black, with a shell size of 23-24. It is designed for free hanging (in-line) mounting and features a threaded fastening system for secure connection. The housing is keyed to prevent misalignment, and it includes a backshell feature for additional strain relief. It is unshielded and rated IP67 for dust tight and waterproof protection. The material flammability rating is UL94 V-0, ensuring safety in flame-prone environments.
The housing is from the CPC series, indicating a family of circular plastic connectors. It is designed for use with crimp contacts, allowing for flexible wire termination. The free-hanging mounting style simplifies installation in cable assemblies. Typical applications include sensor connections, power distribution, and control systems where a durable, sealed connector is required. The polyamide housing provides good insulation and mechanical strength.
| Qty | Low | High |
|---|---|---|
| 1+ | $38.74 | $38.74 |
| 10+ | $34.12 | $34.12 |
| 25+ | $32.43 | $32.43 |
| 100+ | $30.81 | $30.81 |
| 250+ | $29.93 | $29.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 24 positions.
Free hanging (in-line).
IP67 - dust tight and waterproof.
Polyamide (PA), Nylon.
Threaded fastening.
UL94 V-0.
Crimp contacts.
