| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Size | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Housing Color | |
| Industrial Grade | |
| Ingress Protection | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Type |

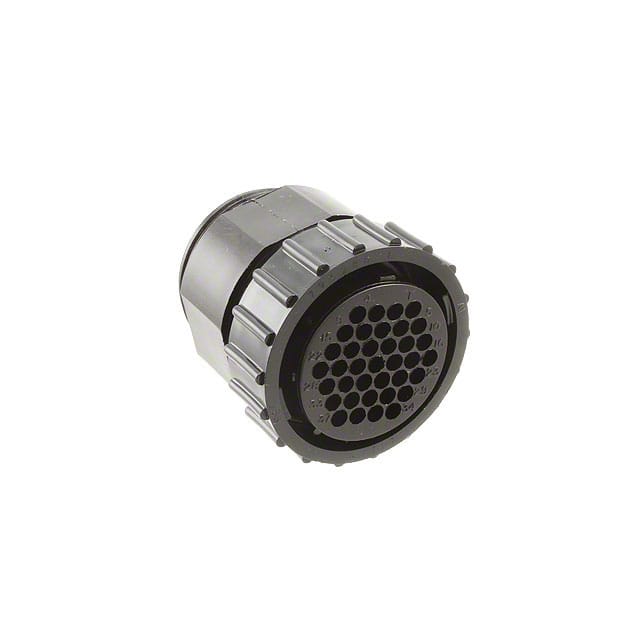

The TE Connectivity 796288-1 is a one-piece sealed circular plastic connector (CPC) plug housing from Series 1. It is designed for use with female socket contacts (sold separately) and accommodates 37 positions with contact size 16. The housing features a threaded coupling nut and backshell for secure mating and cable strain relief.
This plug housing is constructed from black polyamide (nylon) thermoplastic with a UL94 V-0 flammability rating. It is unshielded and keyed for proper orientation. The free-hanging (in-line) mounting style allows for flexible cable-to-cable or cable-to-panel connections. The IP67 rating ensures dust-tight and waterproof performance in harsh environments.
Typical applications include commercial signal and power distribution systems where a reliable, sealed connection is required. The housing is RoHS compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $62.78 | $62.78 |
| 10+ | $59.25 | $59.25 |
| 25+ | $55.54 | $55.54 |
| 50+ | $52.89 | $52.89 |
| 100+ | $46.54 | $46.54 |
| 250+ | $45.91 | $45.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 796288-1 has 37 positions.
This housing is designed for female socket contacts with contact size 16, using crimp termination.
It is a free hanging (in-line) plug housing.
The housing is rated IP67, meaning it is dust tight and waterproof.
The housing material has a UL94 V-0 flammability rating.
