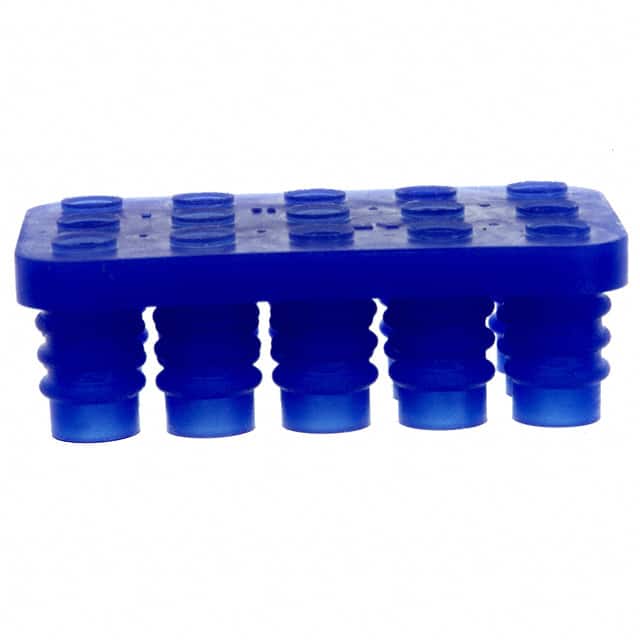

794282-1 TE Connectivity 794282-1 is a 15-position wire seal accessory for Universal MATE-N-LOK sealed connectors. It features a blue silicone housing and accepts 14-20 AWG wire.
Mfr Part #:

794282-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 794282-1 is a 15-position wire seal accessory for Universal MATE-N-LOK sealed connectors. It features a blue silicone housing and accepts 14-20 AWG wire.
✓ Total Stock: 1,200 pcs
$ Price Range: $1.71 - $3.16

794282-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
1,200 pcs
On Request
1200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

794282-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Color
Features
For Use With
Housing Material
Number of Positions
Sealed
Tape & Reel
View Similar Products (0)

794282-1 Description

Short technical summary and product information.

The TE Connectivity 794282-1 is a wire seal accessory designed for use with Universal MATE-N-LOK sealed connectors. This 15-position seal is made from blue silicone and is intended for wire-to-wire applications.



Key specifications include a centerline and row-to-row spacing of 6.35 mm, and it accepts wire sizes from 14 to 20 AWG (0.5 to 2 mm²) with an insulation diameter range of 1.52 to 3.30 mm. The part is splash-proof and packaged in bags of 400 pieces.



This accessory is not sealed and is not glow wire rated. It is compliant with EU RoHS and ELV requirements.

794282-1 Quick Information

Product Type: Wire Seal
Series: Universal MATE-N-LOK
Canonical Name: TE Connectivity Universal MATE-N-LOK Wire Seal, 15 Position, Blue, Silicone
Subcategory: Rectangular Connector Accessories

794282-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

794282-1 Estimated Pricing

Qty Low High
1+ $3.16 $3.16
10+ $2.70 $2.70
25+ $2.55 $2.55
100+ $2.30 $2.30
250+ $2.10 $2.10
400+ $1.71 $1.71

Estimated market price range - modelled values for guidance only, not live distributor offers.

794282-1 Features

  • 15-position wire seal for Universal MATE-N-LOK connectors.
  • Blue silicone housing material for flexibility and durability.
  • Accepts 14-20 AWG wire with 6.35 mm centerline spacing.
  • Splash-proof design for wire-to-wire applications.
  • Packaged in bags of 400 pieces.

794282-1 Applications

  • Sealing wire connections in Universal MATE-N-LOK connectors.
  • Splash-proof protection in wire-to-wire applications.
  • Use with 14-20 AWG stranded wire in connector assemblies.

794282-1 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 794282-1 wire seal have?

The 794282-1 wire seal has 15 positions.

What is the centerline spacing of this wire seal?

The centerline spacing is 6.35 mm.

What wire sizes does the 794282-1 accept?

It accepts wire sizes from 14 to 20 AWG (0.5 to 2 mm²).

What is the housing material of the 794282-1?

The housing material is silicone.

Is the 794282-1 wire seal RoHS compliant?

Yes, it is always EU RoHS/ELV compliant per the datasheet.
