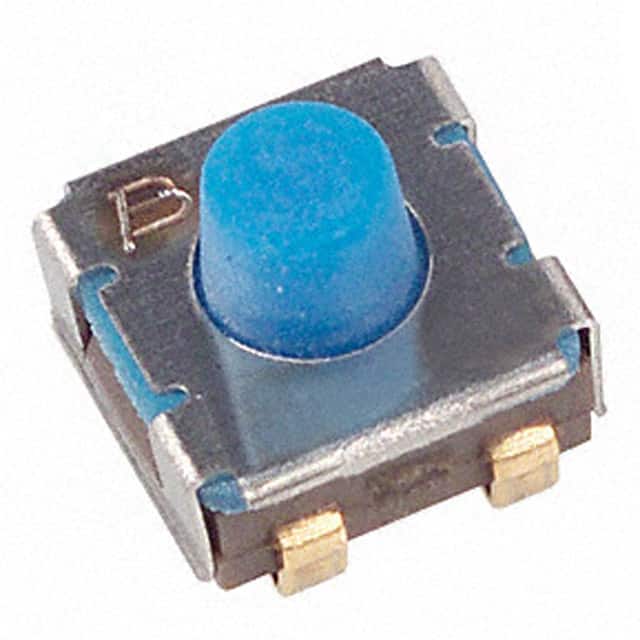

7914J-1-024E The Bourns 7914J-1-024E is a normally open tactile switch with a SPST-NO circuit. It is rated for 0.1A at 16V and operates within a temperature range of -55°C to 125°C.
Mfr Part #:

7914J-1-024E

Available from 1 distributors
Mfr Name: Bourns
Bourns
The Bourns 7914J-1-024E is a normally open tactile switch with a SPST-NO circuit. It is rated for 0.1A at 16V and operates within a temperature range of -55°C to 125°C.
✓ Total Stock: 50 pcs
$ Price Range: $0.75

7914J-1-024E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request 10+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

7914J-1-024E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Height off PCB, Vertical
Actuator Material
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Contact Resistance
Illumination
Insulation Resistance
Lead Style
Mounting Type
Operating Force
Operating Temperature
Operating Temperature Range
Outline
Storage Temperature
Switch Function
Tape & Reel
Termination Style
View Similar Products (0)

7914J-1-024E Description

Short technical summary and product information.

This Bourns 7914J-1-024E tactile switch features a normally open (SPST-NO) circuit configuration, suitable for various electronic applications. It is designed for surface mounting with J-lead termination and offers a contact rating of 0.1A at 16VAC/DC.



The switch operates reliably within a wide temperature range of -55°C to +125°C, with a maximum contact resistance of 100 milliohms and insulation resistance of 100 megohms. The actuator force is specified at 300 ± 100g, and it has a cycle life of 500,000 actuations when loaded.



Constructed with a stainless steel cover and thermoplastic base (UL94V-0), it is sealed to IP67 standards, making it compatible with board washing processes and popular vacuum pick-and-place equipment. The dimensions are 5.00mm x 5.00mm, with an actuator height of 2.62mm off the PCB.



This component is RoHS3 compliant and has an MSL 1 rating, indicating unlimited moisture sensitivity level. It meets EIA/EIAJ/IPC/VRCI SMD standard outline dimensions.

7914J-1-024E Quick Information

Product Type: Tactile Switch
Canonical Name: Bourns 7914J-1-024E SPST-NO Tactile Switch
Subcategory: Tactile Switches

7914J-1-024E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

7914J-1-024E Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

7914J-1-024E Features

  • Normally open SPST-NO circuit configuration.
  • Rated for 0.1A at 16VDC/VAC.
  • Wide operating temperature range of -55°C to 125°C.
  • IP67 sealed for board washing compatibility.
  • Surface mount with J-lead termination.

7914J-1-024E Applications

  • Suitable for automated assembly processes.
  • Ideal for use in environments requiring sealing.
  • Used in general purpose electronic controls.
  • Compatible with vacuum pick-and-place equipment.

7914J-1-024E FAQs

5 frequently asked questions generated from this part’s specifications.
What is the contact rating for the Bourns 7914J-1-024E tactile switch?

The contact rating is 0.1A at 16VAC/DC.

What is the operating temperature range for this switch?

The operating temperature range is -55°C to +125°C.

What type of mounting is required for the 7914J-1-024E?

This switch requires surface mounting.

Is the Bourns 7914J-1-024E RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The MSL is 1 Unlimited.
