| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31,250 pcs
|
31250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accepts Wire Insulation Diameter Range | |
| Barrel Type | |
| Contact Base Material | |
| Contact Finish | |
| Contact Material | |
| Crimp Type | |
| ELV | |
| Gender | |
| Halogen Content | |
| Halogen Free | |
| Insulation | |
| Length | |
| Mating Retention Type | |
| Mounting Type | |
| Operating Temperature Range | |
| Overall Length | |
| Packaging Method | |
| Packaging Quantity | |
| Quick Disconnect Terminal Type | |
| SVHC Present | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Orientation | |
| Terminal Plating Material | |
| Terminal Type | |
| Termination | |
| Wire Gauge | |
| Wire Insulation Support | |
| Wire size |

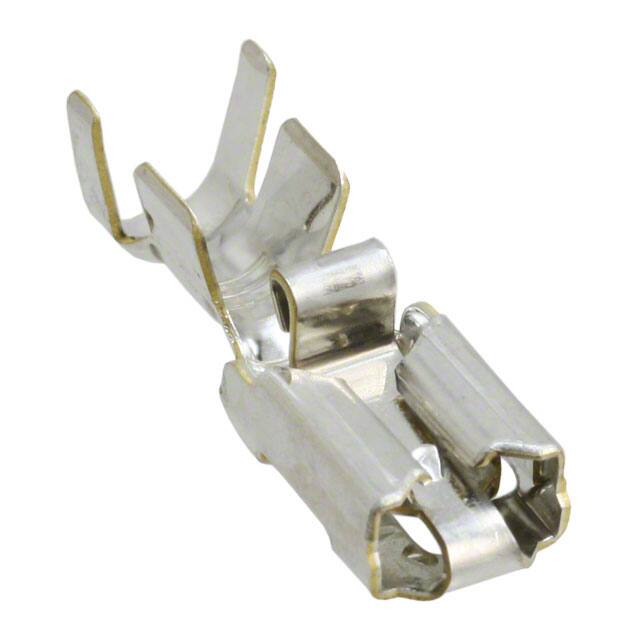

The TE Connectivity 790319-3 is a Positive Lock 250 series quick disconnect receptacle designed for 10-12 AWG wire (3.31 – 5.26 mm²). It features a 6.35 mm (0.250 inch) mating tab width and 0.81 mm tab thickness. The terminal is made of brass with a pre-tin plating and uses an F-crimp termination with an open barrel and wire insulation support. It is non-insulated and has a dimple mating retention feature for secure connection. The overall length is 22.2 mm and it accepts wire insulation diameters from 3.43 to 5.08 mm. This component is rated for operating temperatures from -40 to 110 °C and is packaged in strip/reel form with 1250 pieces. It is compliant with EU RoHS, ELV, and REACH directives and is low halogen.
| Qty | Low | High |
|---|---|---|
| 1,250+ | $0.17 | $0.17 |
| 5,000+ | $0.14 | $0.14 |
| 10,000+ | $0.14 | $0.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts 10-12 AWG wire (3.31 – 5.26 mm²).
The mating tab width is 6.35 mm (0.250 inches).
Yes, it is EU RoHS Directive 2011/65/EU compliant.
-40 to 110 °C.
Strip/reel packaging with 1250 pieces per reel.
