| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Features | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Topology | |
| Type | |
| Voltage | |
| Width |

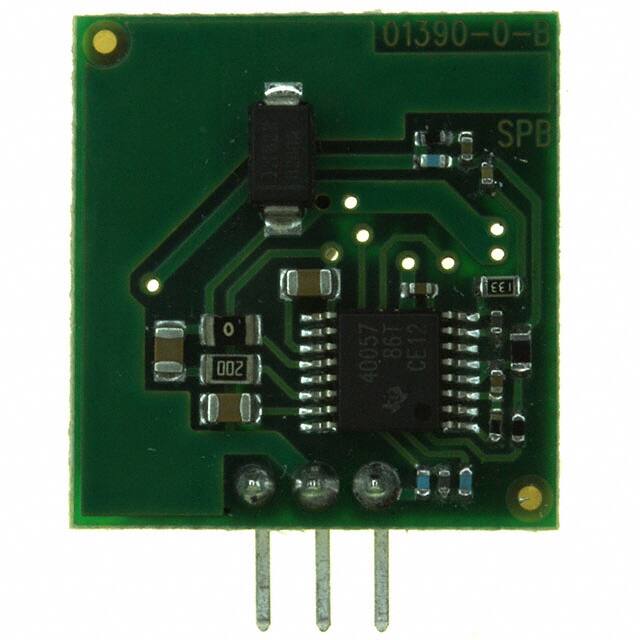

The Murata 78SR-5/2-C is a step-down switching regulator designed as a high-efficiency replacement for linear regulators. It delivers a nominal 5V output at 2A with up to 95% efficiency, reducing heat dissipation. It operates from a wide input voltage range of 8V to 32V.
The regulator uses a synchronous rectifier buck topology with a 200kHz switching frequency. Line regulation is ±0.35% and load regulation ±0.25%. It includes over-temperature protection (OTP) and short circuit protection (SCP).
Housed in a 3-SIP through-hole module, it measures 20.3mm x 8.4mm x 21.6mm. No external capacitors are required for operation. The device is rated for -40°C to +70°C ambient temperature with no derating.
It is suitable for commercial ITE applications and serves as a drop-in replacement for many 78xx series linear regulators and other switching regulators like 78HT2, 78SR1, 78ST1, and PT5100 series.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.82 | $16.82 |
| 5+ | $16.20 | $16.20 |
| 10+ | $15.93 | $15.93 |
| 25+ | $15.59 | $15.59 |
| 50+ | $15.34 | $15.34 |
| 100+ | $14.64 | $14.64 |
| 189+ | $14.61 | $14.61 |
| 567+ | $14.15 | $14.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5V nominal.
3-SIP through-hole module.
-40°C to +70°C.
RoHS3 compliant (unverified).
8V to 32V.
Up to 95%.
Over-temperature protection (OTP) and short circuit protection (SCP).
