| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

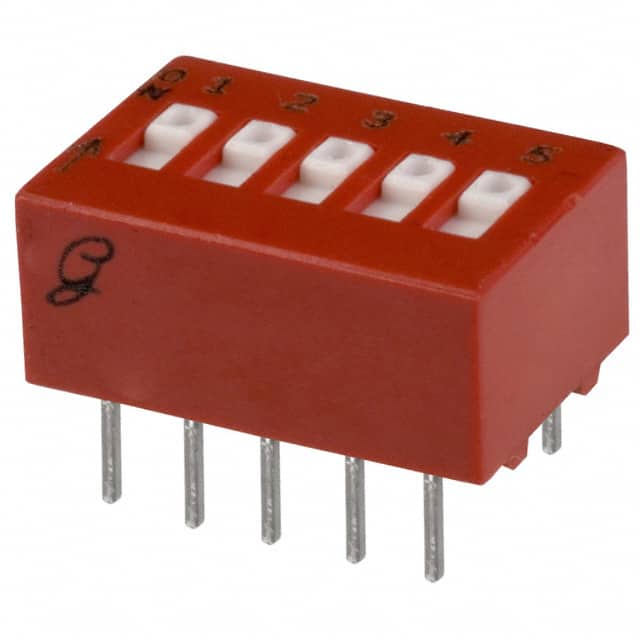

The Grayhill Inc. 78RB05ST is a through-hole mount DIP switch from the 78 Series. This switch offers 5 positions with SPST (Single Pole, Single Throw) circuitry, suitable for various electronic applications.
It is rated for 150mA at 30VDC and features gold-plated copper alloy contacts. The actuator type is a standard slide, with options for flush or recessed levels. The switch has a pitch of 2.54mm (0.100") and a height above the board of 6.73mm (0.265").
Designed for durability, the 78RB05ST has a sealed base life rating of 2,000 cycles and is washable. It operates within a temperature range of -40°C to 85°C. The tape seal feature ensures protection during handling and soldering processes.
This component is RoHS3 Compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 78RB05ST DIP switch has an SPST (Single Pole, Single Throw) circuit configuration.
The switch is rated for 30VDC and 150mA.
The operating temperature range is -40°C to 85°C.
The 78RB05ST is a through-hole mount DIP switch.
Yes, the 78RB05ST features a tape seal.
The mechanical life cycle is rated for 2,000 cycles.
