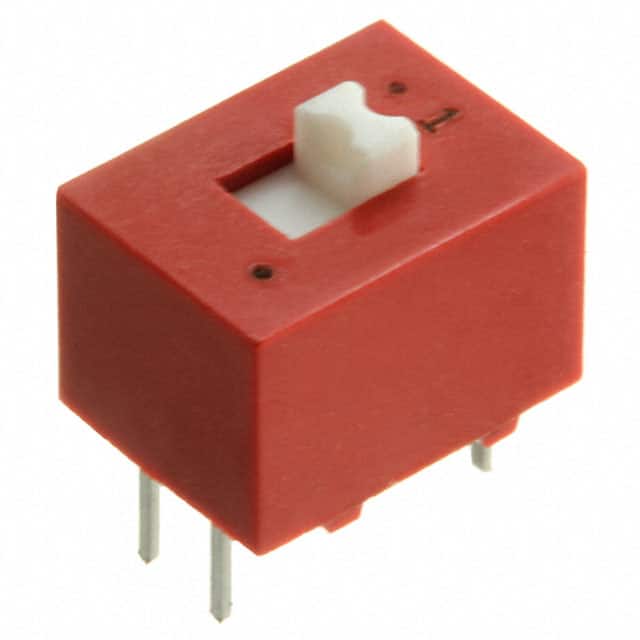

78J01T The Grayhill Inc. 78J01T is a SPDT DIP Switch designed for through-hole mounting. It features a raised slide actuator and operates at 30VDC with a 150mA current rating.
Mfr Part #:

78J01T

Available from 1 distributors
Mfr Name: Grayhill Inc.
Grayhill Inc.
The Grayhill Inc. 78J01T is a SPDT DIP Switch designed for through-hole mounting. It features a raised slide actuator and operates at 30VDC with a 150mA current rating.
✓ Total Stock: 416 pcs
$ Price Range: $0.75

78J01T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
416 pcs
On Request
416 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

78J01T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Height Above Board
Mounting Type
Number of Positions
Operating Temperature
Pitch
Termination Style
Voltage Rating
Washable
View Similar Products (0)

78J01T Description

Short technical summary and product information.

This Grayhill Inc. 78J01T is a single-pole, double-throw (SPDT) DIP switch. It is designed for through-hole mounting and features a raised slide actuator. The switch is rated for a maximum voltage of 30VDC and a current of 150mA.



With a pitch of 2.54mm (0.100"), the 78J01T offers a compact solution for circuit control. It operates within a temperature range of -40°C to 85°C. The termination style is PC Pin, and the contact finish is gold over a copper alloy material.



The switch is specified as RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1. It is suitable for applications requiring reliable switching in a compact form factor.

78J01T Quick Information

Product Type: DIP Switch
Series: 76-78
Canonical Name: Grayhill Inc. 78J01T SPDT Thru-Hole DIP Switch
Subcategory: Thru-Hole DIP Switch

78J01T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

78J01T Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

78J01T Features

  • Single Pole Double Throw (SPDT) circuitry.
  • Through-hole mounting for PCB integration.
  • Rated for 30VDC and 150mA current.
  • Operates in -40°C to 85°C temperature range.
  • Raised slide actuator for easy operation.

78J01T Applications

  • Ideal for circuit board configuration.
  • Used for setting operational modes.
  • Suitable for test point selection.
  • Applicable in control system interfaces.

78J01T FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the 78J01T switch?

The 78J01T switch has a current rating of 150mA at 30VDC.

What mounting style does the 78J01T use?

The 78J01T uses through hole mounting style.

What is the contact material of the 78J01T?

The contact material is copper alloy with a gold finish.

What is the operating temperature range of the 78J01T?

The operating temperature range is from -40°C to 85°C.

Is the 78J01T RoHS compliant?

RoHS compliance status is unverified; treat as low-confidence.
