| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,410 pcs
|
2410 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Dielectric Strength | |
| Frequency | |
| Inductance | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Standard Package Quantity | |
| Storage Temperature Range | |
| Tape & Reel | |
| Temperature Rise | |
| Tolerance | |
| Type |

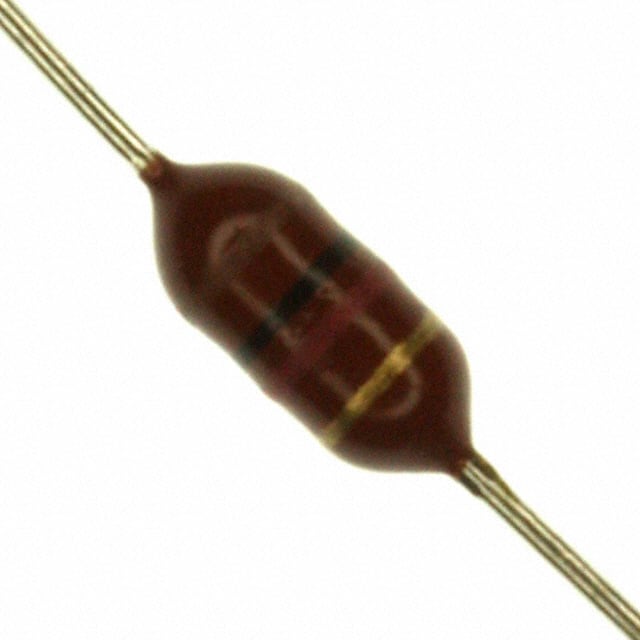

The Bourns 78F102J-RC is a fixed inductor from the 78F series, offering an inductance of 1 mH with a tolerance of ±5%. It is rated for a maximum current of 60 mA and has a maximum DC resistance (DCR) of 31.4 Ohms. This unshielded inductor features a ferrite core and a wirewound drum core construction.
This component is designed for through-hole mounting in an axial package, with dimensions of 0.110" Dia x 0.280" L (2.79mm x 7.11mm). It has a minimum quality factor (Q) of 60 at 790 kHz and a minimum self-resonant frequency (SRF) of 1.2 MHz. The operating temperature range is -55°C to 105°C.
The 78F102J-RC is suitable for general purpose applications including DC/DC converters and power supplies. It is RoHS compliant and has a dielectric strength of 500 VRMS.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
| 10+ | $0.18 | $0.18 |
| 25+ | $0.16 | $0.16 |
| 100+ | $0.15 | $0.15 |
| 250+ | $0.13 | $0.13 |
| 1,000+ | $0.12 | $0.12 |
| 2,500+ | $0.11 | $0.11 |
| 5,000+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 1 mH with a tolerance of ±5%.
The maximum current rating is 60 mA.
The maximum DC resistance is 31.4 Ohms.
The minimum self-resonant frequency is 1.2 MHz.
The package is an axial, through-hole type.
The operating temperature range is -55°C to 105°C.
Yes, it is RoHS3 compliant per the datasheet.
