| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
630 pcs
|
630 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

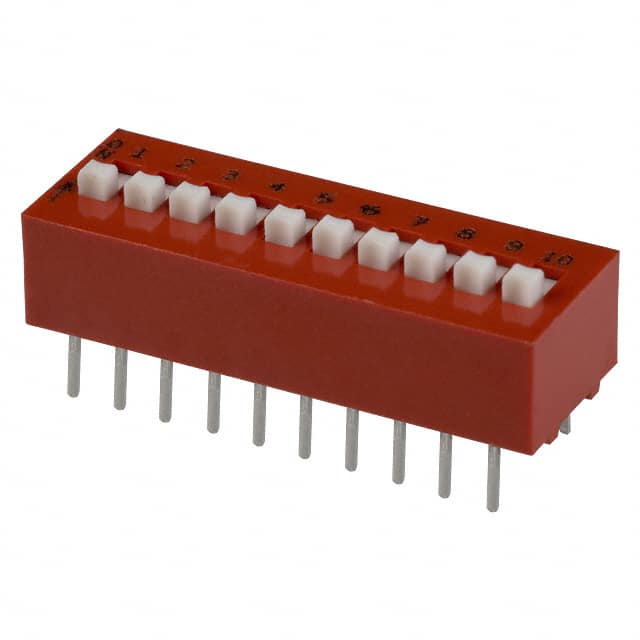

The Grayhill Inc. 78B10ST is a thru-hole mount DIP switch with 10 positions and SPST circuitry. It is rated for 30 VDC and 50 mA, with a mechanical life of 2,000 actuations. The switch features a raised slide actuator and a tape seal for protection during handling and soldering. Its operating temperature range is -40°C to 85°C.
Designed for reliable operation, this DIP switch utilizes copper alloy contact material with gold plating for good conductivity. The pitch is 2.54mm (0.100"), and the height above the board is 8.00mm (0.315"). The 78B10ST is suitable for applications requiring simple on/off switching in a compact form factor.
This component is RoHS3 compliant and has an MSL of 1. The through-hole mounting ensures a secure connection to the PCB, making it suitable for various electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 78B10ST DIP switch features SPST (Single Pole Single Throw) circuitry.
The 78B10ST DIP switch has 10 positions.
The 78B10ST DIP switch is rated for 30 VDC and 50 mA.
The 78B10ST DIP switch has a mechanical life cycle rating of 2,000 actuations.
The 78B10ST DIP switch operates within a temperature range of -40°C to 85°C.
Yes, the 78B10ST DIP switch features a tape seal.
